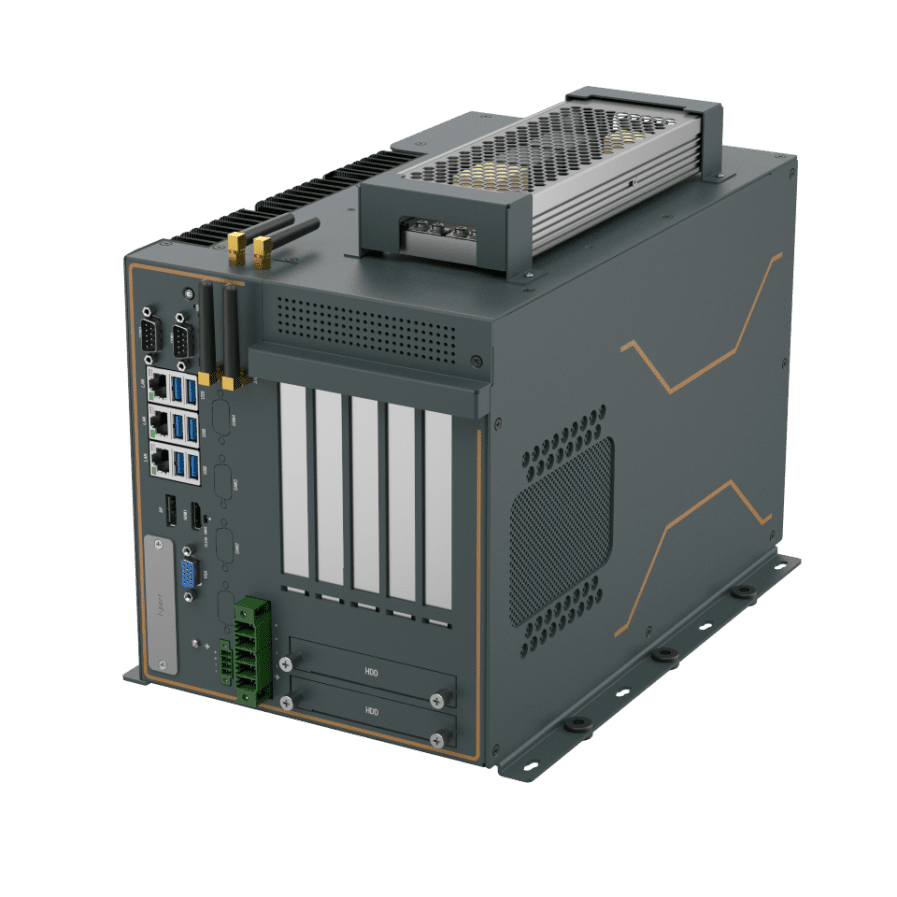

BRAV-7721/S001/i3 Edge Computing System with Edge Computing System with Intel® Alder Lake-S i3-12100 CPU processor & 8G DDR5, 6*USB3.2, 1*HDMI, 1*VGA and expansion slots

Key Features

  • Intel® 12th Gen Alder lake-S LGA1700 CPU
  • Intel® Q670 Chipset
  • 2*DDR5 4800MHz SODIMM, up to 64GB
  • 1*DP+1*HDMI and 1*VGA, UHD 8K+4K three independent displays
  • 2*Intel® I226V 2.5G LAN, 1*Intel® I219LM Gigabit LAN, support iAMT12.0
  • 2*PCIe X16 (X8 signal)+2*PCIe X16 (X4 signal), four PCIe expansions
  • 2*2.5”0 Bays, 1*M.2 2280 PCIeX4 NVMe
  • Support TPM2.0 and iVpro technology
  • Fanless cooling for CPU, AI/GPU card with efficient fan cooling  design
  • Support dual 450W GPU + dual 75W/150W AI acceleration cards
  • 1000W DC IN 12V, and wide temperature fanless  AC-DC power adapter with PFC


Multi-access edge computing (MEC), also referred to mobile edge computing, is an ETSI-defined network architecture concept that enables cloud computing capabilities and an IT service environment at the edge of the cellular network and, more in general at the edge of any network.

The idea about MEC system is that by running applications and performing related processing tasks closer to the cellular customer, network congestion is reduced, and applications perform better. MEC technology is designed to be implemented at the cellular base stations or other edge nodes and enables flexible and rapid deployment of new applications and services for customers.

Embedding elements of information technology and telecommunications networking, MEC allows cellular users to open their radio access network (RAN) to authorised third parties including application developers and engineers.

The JHCTECH BRAV-7721 series are workstation-grade Edge computing system that are powered by Intel® Alder Lake-S series CPU with Q670 chipset, dual-channel DDR5 memory, and four PCIe expansions. This series offers flexible optional computing power, multi  IO interfaces, high PFC power supply , high efficiency cooling solution and industrial grade reliability design which makes them suitable for V2X MEC, highway event detection, unmanned experiment vehicle and high-precision machine vision and other field applications.

Lead time: 2-3 weeks from receipt of order.


BRAV-7721-S001 DS-EN A0.2
