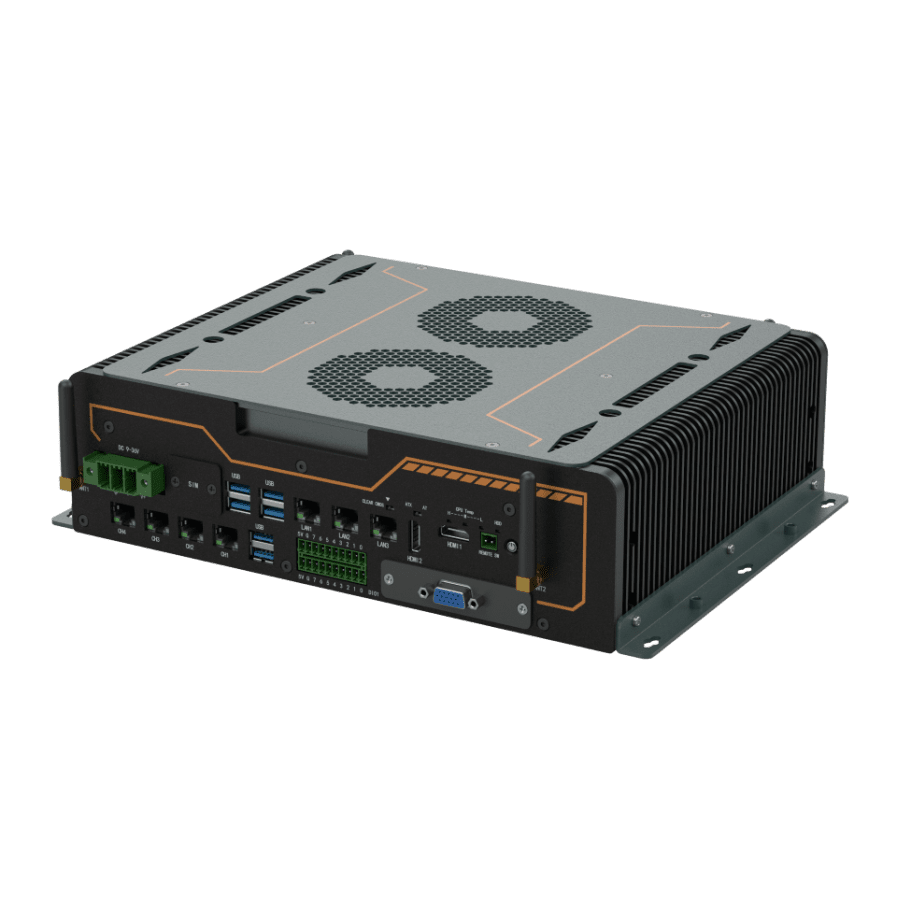

BRAV-7601/S002-i9 AI Edge Computing System with Intel Core i9-10900E processor & 16G DDR4, 4*PoE+, 4*USB3.2, 2*HDMI, 1*VGA and expansion slots

Key Features

  •  Intel® Comet lake 10th-Gen Core™ i9 CPU
  • Two temperature control fan with aluminium chassis
  • 3*2.5G-LAN+4*Gig-LAN with POE function
  • 3*M.2 support Gig+WiFi6, 4G LTE, 5G NR module
  • 1*MXM3.1, supports MXM GPU modules & AI acceleration cards which power consumption lower than 190W
  • DC 9~36V wide power input


Multi-access edge computing (MEC), also referred to mobile edge computing, is an ETSI-defined network architecture concept that enables cloud computing capabilities and an IT service environment at the edge of the cellular network and, more in general at the edge of any network.

The idea about MEC system is that by running applications and performing related processing tasks closer to the cellular customer, network congestion is reduced, and applications perform better. MEC technology is designed to be implemented at the cellular base stations or other edge nodes and enables flexible and rapid deployment of new applications and services for customers.

Embedding elements of information technology and telecommunications networking, MEC allows cellular users to open their radio access network (RAN) to authorised third parties including application developers and engineers.

The JHCTECH BRAV-7601 series are high-performance AI MEC computing system powered by Intel® Comet lake 10th-Gen CPU and specially designed for C-V2X, Special vehicle mounted, high-precision machine vision, medical imaging and other applications.

Lead time: 2-3 weeks from receipt of order.


BRAV-7601 DS-EN A0.1
