BRAV-7201/S003-i7S GPU Box Computer with Intel® Skylake-S Core i7-6500U processor & 32G DDR4, 5*LAN, 6*USB3.2, 6*COM, Dual 4K display and supports Intel iVpro

Key Features

  • Aluminium profile housing, no fan cooling design Intel Skylake-U/Kabylake-U CPU
  • 2*DDR4 2133MHz SODIMM, up to 32GB
  • 1*HDMI, 1*DP, dual 4K display port
  • 5*Gig LAN, 4*USB3.0, 3*USB2.0(one is internal )
  • 6*COM, 16-bit iso DIO, Audio out and Mic
  • 1*Mini PCIe(PCIe+USB)full size, 1*MLU220 M.2
  • 1*mSATA, 1*2.5″ SATA shock absorbing drive bay
  • Support intel iVpro and optional support TPM 2.0
  • DC 9~30V wide power input, overcurrent, overvoltage, short circuit and reverse connection protection
  • Aluminium profile bottom shell is designed for hard disk heat dissipation, improves working temperature of the hard disk


The graphics processing unit (GPU) in computers help handle graphics-related work like graphics, effects, and videos. Integrated GPUs are built into your PC’s motherboard, allowing computers to be compact, lightweight, and power-efficient.

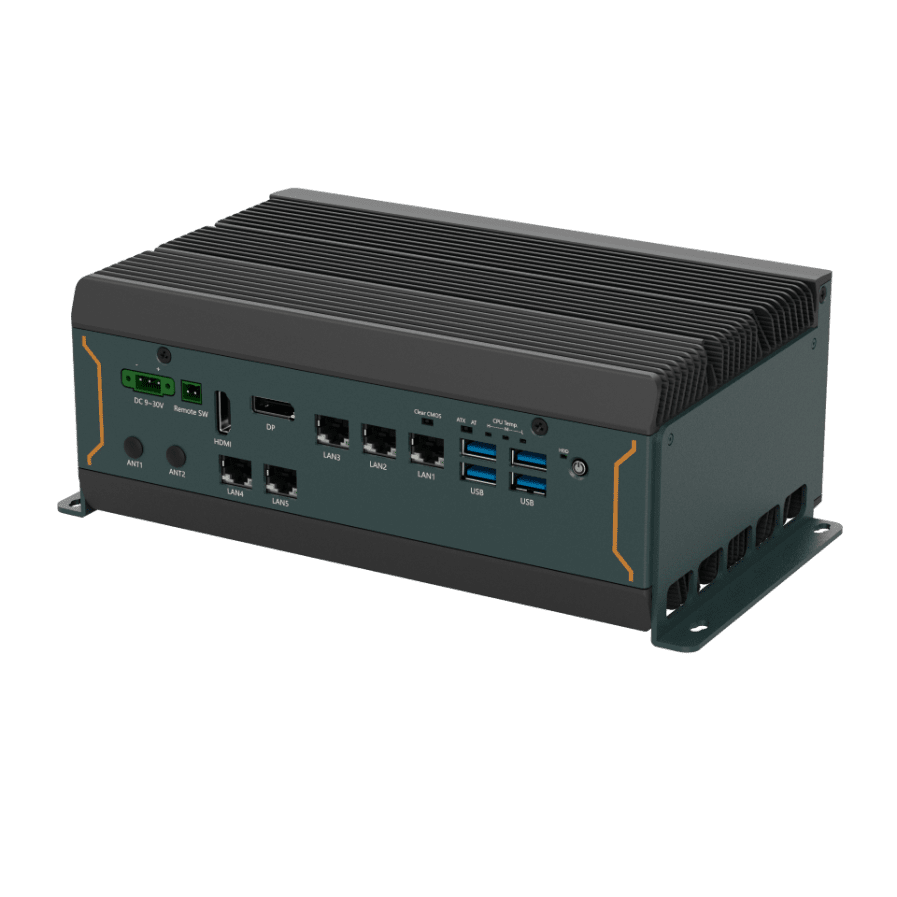

The JHCTECH BRAV-7201 series are new industrial designed, aluminium profile box computers without fan heat dissipation. The BRAV-7201 series are equipped with Intel Skylake- U/Kabylake-U CPU, dual DDR4 2133MHz SODIMM, up to 32GB memory, Intel 9 Gen HD Graphics, HDMI and DP dual 4K display, 5*G- LAN, 4*USB3.0, 6*COM, 16-bit Iso DIO, 1*Mini PCIe, support MLU220 M.2, support dual 4G/Wifi/BT. mSATA and 1*2.5 SATA HDD/SSD.

The BRAV-7201 series comes with 9-30V wide power input and aluminium profile bottom shell that is designed for hard disk heat dissipation. This series is designed for industrial applications such as artificial intelligence, machine vision and robotics.

Lead time: 3-4 weeks from receipt of order.


BRAV-7201 DS-EN A1.2
