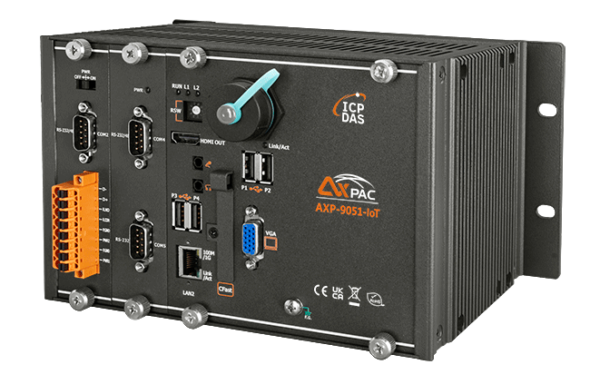

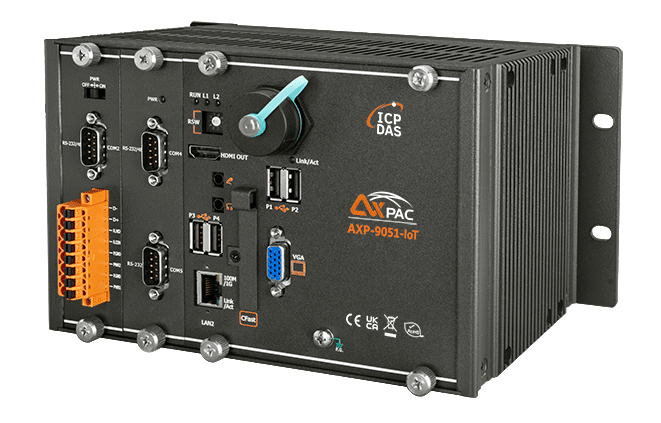

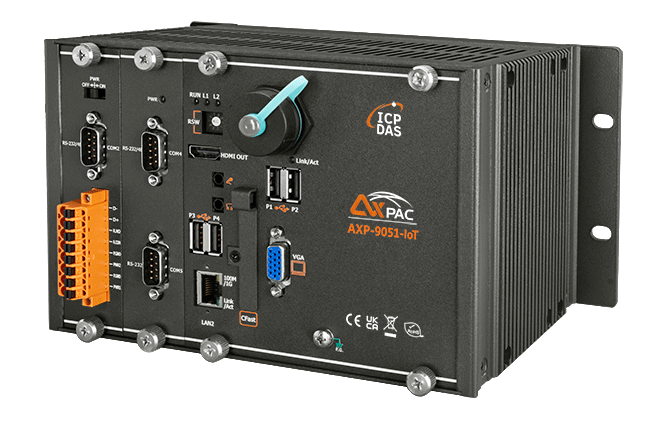

AXP-9051-IoT 1-slot Metal Standard PAC with i5-8365UE CPU and Win10 IoT
• Intel® Core™ i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T)
• 16 GB DDR4 SDRAM
• 64 GB SSD
• VGA / HDMI Display Output
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input
The ICP DAS AXP-9051-IoT are Windows 10 IoT based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC.
The AXP-9051-IoT is equipped with an Intel Core i5-8365UE CPU, various connectivity including dual Gigabit Ethernet, VGA, HDMI, USB port, RS-232 and RS-485 interface and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules. Local I/O slots are available for use with our I-9K and I-97K series I/O modules, these remote I/O expansions are available for use with Ethernet I/O modules or RS-485 I/O modules.
AXP-9000-IoT has a built-in Windows 10 IoT Enterprise operating system, which can support both the Universal Windows App and traditional Windows applications simultaneously. For software development tools, it can maintain maximum sharing with Windows 10, and applications can be quickly ported to AXP-9000 and deployed in a variety of harsh environments.
