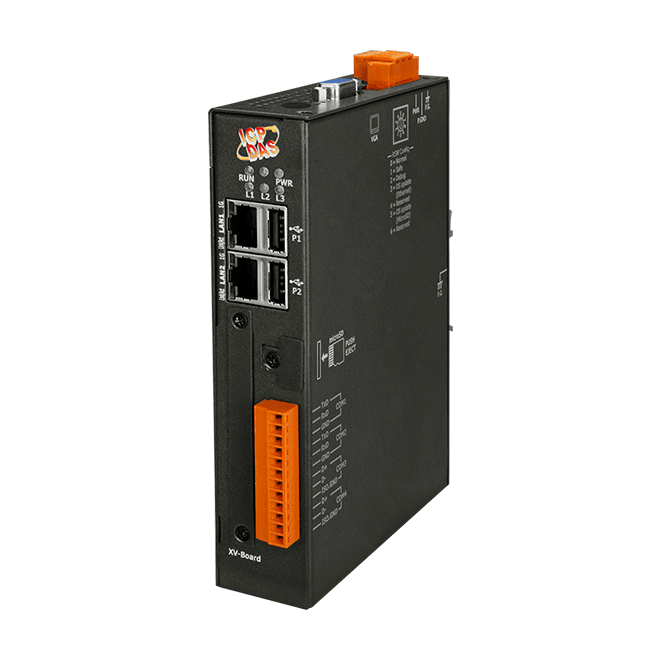

WP-2241M-CE7 Standard PAC with Cortex-A8 CPU, WinCE 7.0, 1 I/O Bus and metal casing


Key Features

  • Cortex-A8, 1 GHz CPU
  • Windows CE 7.0
  • Hard Real-Time Capability
  • Rich software support
  • Various Memory and Storage
    ‣ 512 MB SDRAM and 256 MB Flash
    ‣ 64KB FRAM memory for data retention
    ‣ 1 x microSD socket with one microSD card
  • Various Communication Interfaces
    ‣ 2 x 10/100/1000BASE-T Ethernet Ports
    ‣ 4 x Serial Ports (RS-232/485)
    ‣ 2 x USB 2.0 (host)
  • Built-In VGA Port
  • Built-In Real-time clock
  • 64-bit Hardware Serial Number for Software Protection
  • I/O Expansion Bus Interface
  • 6 x LED Indicators
  • Built-In dual Watchdog Timer
  • Metal casing
  • Operating Temperature: -25 ~ +75 °C


The ICP DAS WP-2241M-CE7 is the new generation WinCE 7.0 based standard PAC (Programmable Automation Controller) from ICP DAS. This series PAC is equipped with a Cortex A8 CPU (1 GHz) and running a windows CE.NET 7.0 operating system. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in micro SD, the WP-2241M-CE7 can save application programs, image files, and data.

The benefits of running Windows CE on WP-2241M-CE7 device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment.

The WP-2241M-CE7 is capable of running software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with applications, so the application’s design is more convenient and more practical.

Lead time: 5-7 working days from receipt of order.
