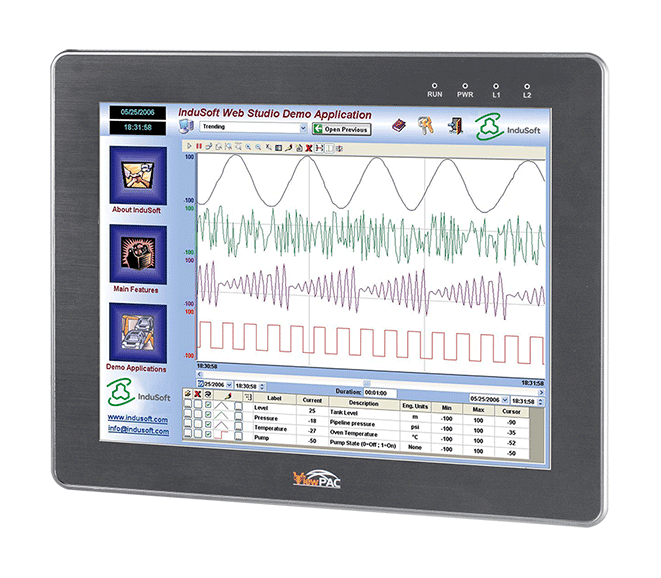

VP-6239-CE7 15″ LCD InduSoft (300 tags) Based ViewPAC with 3 I/O slots


Compared with traditional IPC + PLC solutions, ICP DAS ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC

Key Features

• Cortex-A8 CPU (32-bit & 1 GHz)
• IP65 Compliant Front Panel
• 5.7″/10.4″/15″ TFT LCD (5.7/10.4/15 LCDs are with Touch Panel)
• Rubber Keypad with 6 Keys
• Audio with MIC-In and Line-Out
• 64-bit Hardware Serial Number for Software Protection
• 3 Slots for High Profile I/O Modules
• Rich I/O Expansion Ability
• MRAM (128 KB)
• One Ethernet Port
• 2 Serial Ports (RS-232, RS-485)
• Operating Temperature: -20 ~ +70 °C



The ICP DAS VP-1239-CE7 / VP-4239-CE7 / VP-6239-CE7 is the new generation WinCE based InduSoft PAC of ICP DAS. ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a Cortex-A8 CPU (1GHz) running Windows CE .NET 7.0 operating system, various Communications (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 5.7″ TFT LCD and a rubber keypad. Its operating system, Windows CE .NET 7.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. InduSoft Web Studio Runtime is also pre-installed.

InduSoft Web Studio is a powerful, integrated collection of automation tools that includes all the building blocks needed to develop modern Human Machine Interfaces (HMI), Supervisory Control and Data Acquisition (SCADA) systems, and embedded instrumentation and control applications. Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.

The ICP DAS ViewPAC series offer a broad range of communication interfaces such as Ethernet, RS-232/485, USB, CAN BUS, HART, PROFIBUS and GSM/GPRS/GPS for I/O expansion and communicating with other external devices.
