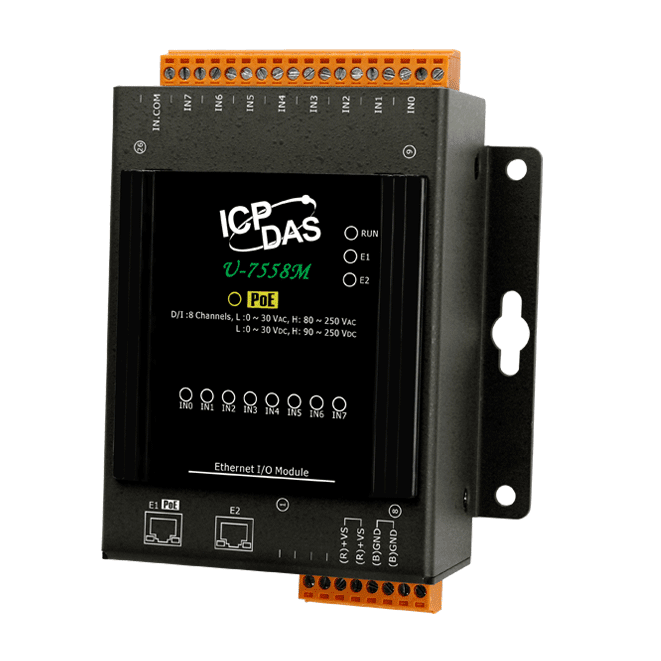

U-7558M OPC UA I/O Module with 8-channels AC/DC DI (80-250 VAC) and 2-port Ethernet Switch

£329.00

Key Features

  • Support OPC UA Server and MQTT Client Protocol
  • Support RESTful API via HTTP and HTTPS
  • Support to Execute OPC UA, MQTT and RESTful API Simultaneously
  • Support Scaling For Analog Signal Converting
  • Support Logic Function Rule Setting: IF, THEN, ELSE
  • Support Schedule: to Execute the Set Rules at a Specific Time
  • Support Event Log: Record the I/O Change for Device Tracking
  • Support IoTstar Cloud Management Software
  • Built-in Web Server to Provide the Web User Interface
  • I/O Channels:  8 x AC/DC Digital input
  • Dual-port Ethernet Switch for Daisy-Chain Topology
  • IEEE 802.3af-compliant Power over Ethernet (PoE)
CE UKCA RoHS WEEE

Description

The ICP DAS U-7558M is an OPC UA I/O module that provides 8 AC/DC digital input channels. It has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced. The ICP DAS U-7558M follows IEEE 802.3af compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. This feature provides greater flexibility and efficiency to simplify system design, save space, and reduce wiring and power sockets. It provides a Web UI to configure/control/monitor the modules, connections, and I/O status via a web browser. It is easy, fast, and no extra APP needed.

ICP DAS UA I/O provides OPC UA server and MQTT client function in industrial networking communication. Users can choose the networking mode according to their needs and environment, to transmit the values of built-in I/O channels to the cloud IT system or field control system for reading and writing. This unit support scaling to convert the analog signal into a more readable value. The U-7500M series support logic function rule setting IF, THEN, ELSE, can set up logical condition/action for I/O and virtual point; Provide schedule function to execute the set rules at a specific time; and support RESTful API function, can read/write I/O and virtual point through HTTP or HTTPS.
