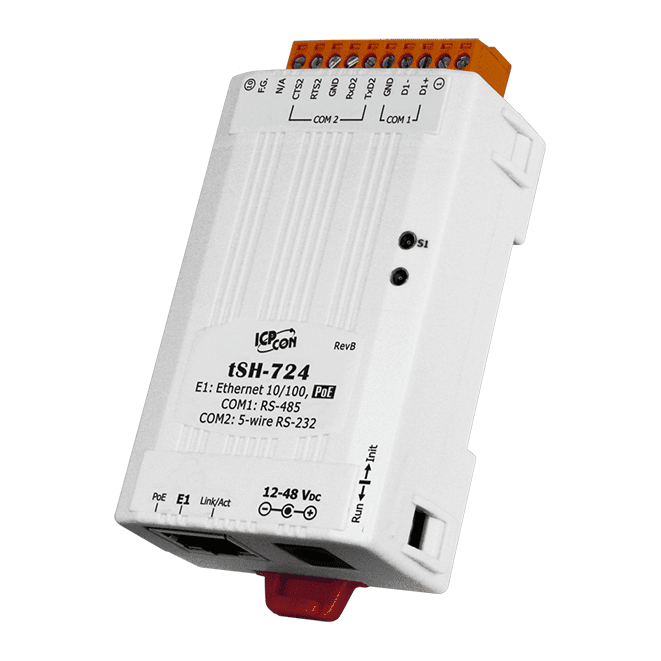

tSH-724 Tiny (1x RS-232 and 1x RS-485) Serial Port Converter with PoE
• Baud Rate conversion application
• Supports Modbus RTU/ASCII protocol conversion
• Raw data mode for most query-response protocols
• Built-in web server for easy configuration (HTTP)
• Redundant power inputs: PoE (IEEE 802.3af, Class 1) & DC jack
• Tiny form-factor and low power consumption
• Read-cache ensures faster response
Baud Rate Conversion: This function allows a single master device to communicate with slave devices using different baud rates and data formats.
Modbus RTU/ASCII Conversion: This function allows a single Modbus RTU/ASCII master device to communicate with Modbus RTU/ASCII slave devices using different protocols, baud rates and data formats.
Two Masters Share One Slave(for tSH-73x Series only): This function allows two master devices connected to different serial ports to share slave devices.
Read-Cache Function: The built-in cache function reduces the loading of serial communication on the slave port by removing duplicated queries when the two master devices are requesting the same information.
