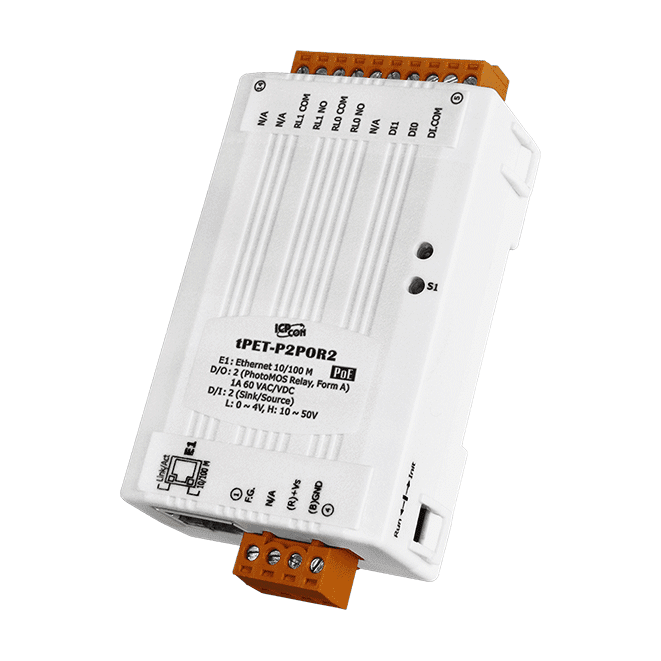

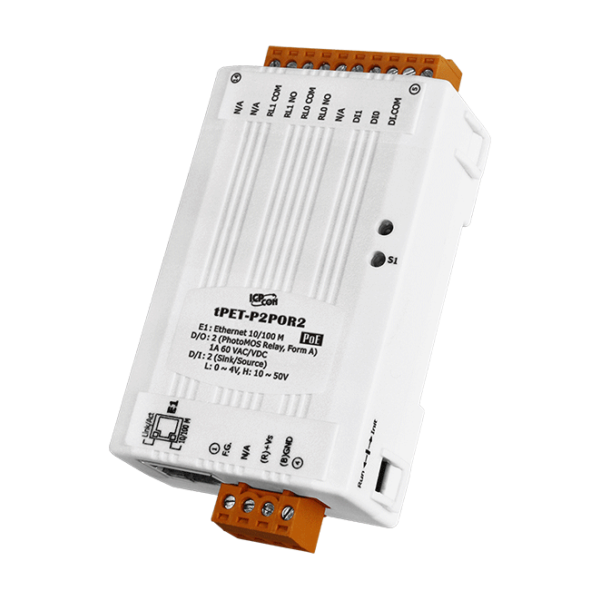

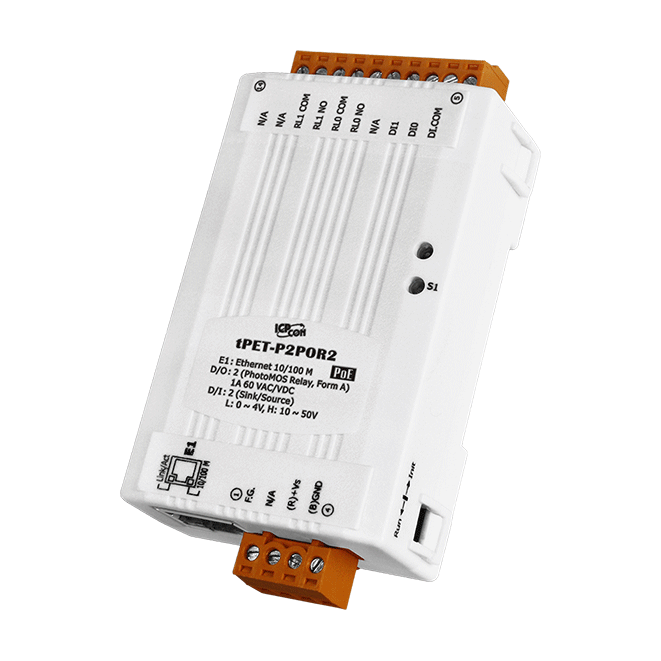

tPET-P2POR2 2-ch Wet Contact DI & 2-ch PhotoMos Relay PoE module

£97.56

Key Features

  • Cost-effective Ethernet I/O modules (Modbus TCP/UDP slave)
  • Contains a 32-bit MCU that efficiently handles network traffic
  • 10/100 Base-TX Ethernet, RJ-45 x1 (Auto-negotiating, Auto MDI/MDIX, LED Indicator)
  • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
  • Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
  • Supports UDP responder for device discovery
  • Supports web configuration and firmware update via Ethernet
  • Isolated digital input
  • Supports latched DI and 32-bit high-speed counter functions
  • Supports I/O pair-connection through the Ethernet
  • Dual-watchdog with power-on and safe value
  • Tiny form-factor with easy DIN-Rail mounting
  • RoHS compliant, no Halogen
  • Low power consumption (about 1.7 W only)

Description

The ICP DAS tET/tPET series is an IP-based Ethernet I/O monitoring and control module. The ICP DAS tET/tPET module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP protocol which makes the ICP DAS tET/tPET series perfect integration with the HMI, SCADA, PLC and other software systems.

The ICP DAS tET/tPET tiny Ethernet I/O modules support various I/O types such as photo-isolated digital input, relay contact, photoMOS relay, and open-collector output. This module can be used to create DI to DO pair-connect through the Ethernet. Once the configuration is completed, the ICP DAS tET/tPET series module can poll the status of the local DI channels and then use the Modbus/TCP protocol to continuously write to a remote DO device in the background.
