TPD-703 7″ Touch HMI Device with 1 x RS-485, 1 x RS-232, Ethernet (PoE), 16 MB Flash
- Cost effective
- PoE (Power over Ethernet)
- High-resolution color touch screen
- RS-485 (including Self-Tuner)
- 1 x RS-232 (3-pin)
- RTC (Real Time Clock)
- GUI design
- Free HMIWorks development tool
- Supports C programming language and Ladder Logic
- Supports the custom communication protocol (C language)
- Modbus RTU protocol

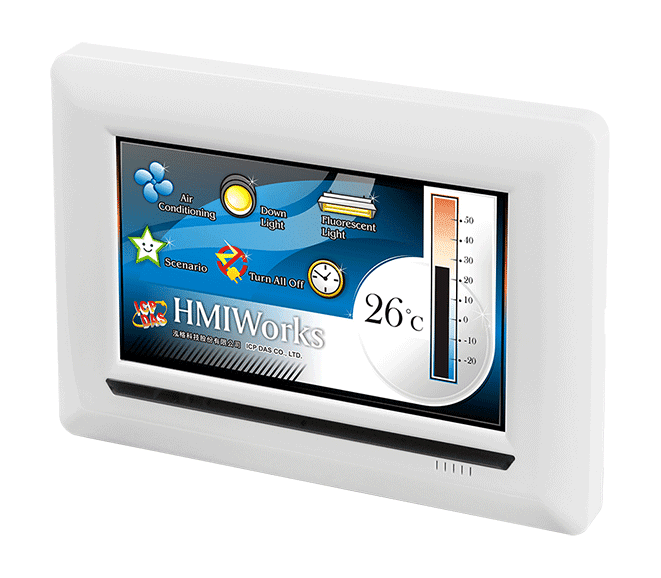

The ICP DAS TPD-703 is a 7 inch mini touch HMI that is specifically designed for building and home automation. This device is equipped with high resolution TFT color touch screen and fits into a regular electrical wall-mount outlet. The ICP DAS TPD-703 expands its memory to 16 MB SDRAM and 16 MB Flash with 1 RS-232 port, 1 RS-485 port, Power over Ethernet (PoE) and real time clock (RTC). The TPD-703 can be seamlessly integrated with a variety remote I/O modules to monitor and control devices to present a flexible (beautiful) and user-defined picture frames.
The TPD-703 is suitable for PLC users programming in Ladder Logic platform or general users familiar with C language environment. With the provided HMIWork software, users can create a simple application program in 30 minutes for the range of ICP DAS TPD mini HMI devices.
