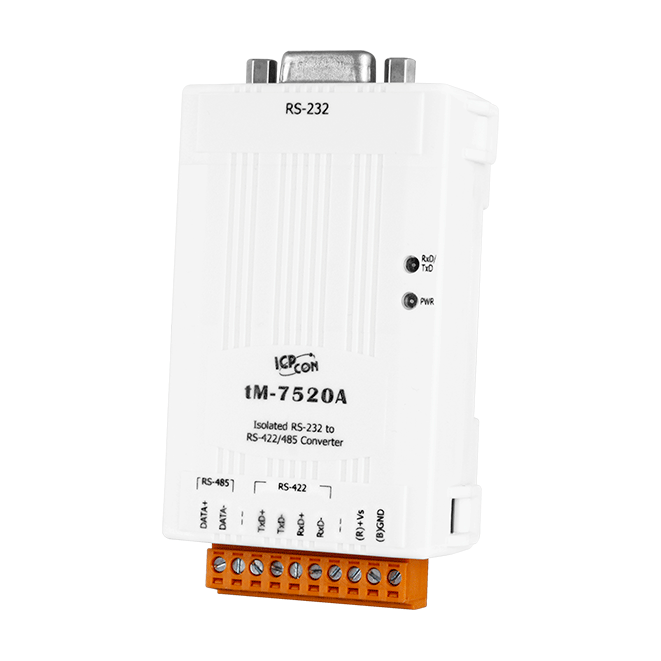

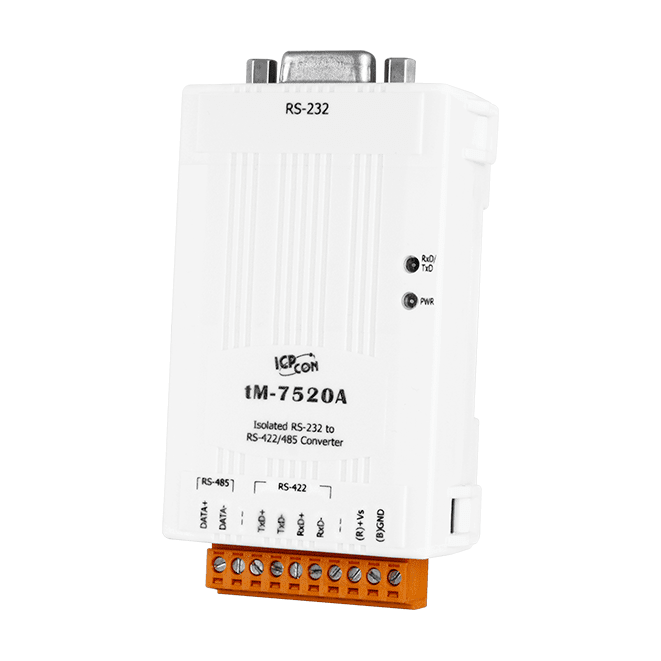

tM-7520A Tiny Isolated RS-232 to RS-422/485 Converter


Key Features

  • 2-way 2500 VDC Isolation Protection
  • Automatic RS-485 Direction Control
  • ESD Protection for the RS-232/422/485 Data Line
  • Transmission Speed of up to 115200 bps
  • ESD Protection for RS-422/485 Data Line
  • Power Input, +10 ~ +30 VDC
  • Low power consumption
  • Long-cable application
  • Power and data flow indicator for troubleshooting
  • Easy-to-use rotary switch for baud rate setting, 1200 ~ 115200 bps
  • Operating Temperatures, -25 °C ~ +75 °C
  • Tiny packaging fits on your DIN-Rail


Most industrial computer systems provide standard RS-232 serial ports. Though widely accepted, RS-232 has limited transmission speed, range, and networking capabilities. The RS-485 standards overcome these limitations by using differential voltage lines for data and control signals, which transparently converts RS-232 signals into isolated RS-485 signal with no need to change any hardware or software. The ICP DAS tM-7520A lets you easily build an industrial grade, long-distance communication system using standard PC hardware.
