RS-M8194H Serial Communication Remote Unit with High-speed 4-axis Motion Control Module


Key Features

  • Remote control via Modbus RTU
  • Can be controlled using SCADA, PAC, or PLC
  • Can be integrated into a multi-station, multi-axis applications
  • 4-axis motion control capability
  • 2/3-axis linear interpolation function
  • 2-axis circular interpolation function
  • Programmable automatic homing function
  • EzMove Utility for configuration and macro programming
  • Test motion functions via EzMove without compilation
  • API Library for rapid development of applications
  • Easy wiring for multi-station applications
  • Can be set as a remote or stand-alone motion controller
  • Supports high-speed FRnet I/O: 128 DO and 128 DI

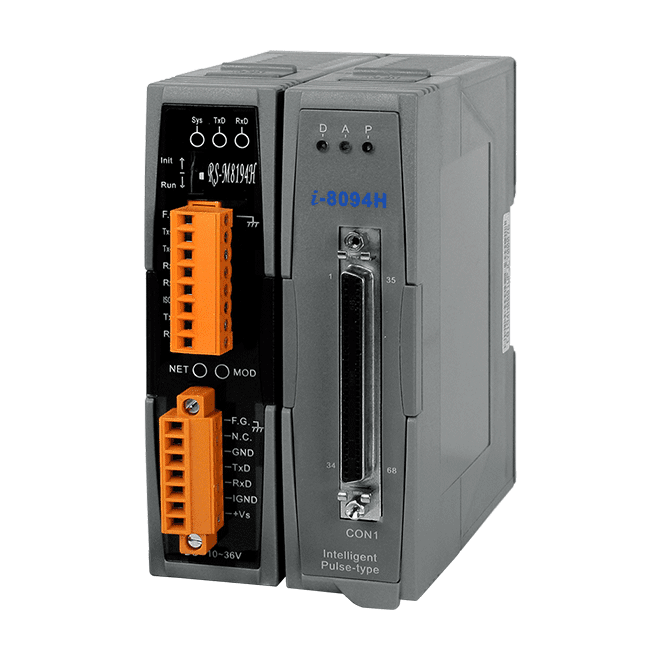

The ICP DAS RS-M8194H is a new product from ICP DAS that can be used to implement remote control functionality via the serial communication and includes an I-8094H module (a 4-axis stepping/pulse-type servo motor control module with an embedded CPU) and a serial communication interface.

The intelligent RS-M8194H can provide users with the ability to develop a wide range of remote motion control applications, and can be integrated in any system where the host platform is built on the Modbus RTU protocol (for example: PC, PAC or PLC). ICP DAS also provides the EzMove Utility and an API Library that can be used to configure the RS-M8194H and to rapidly develop customized control applications.

• EzMove Utility
EzMove is a configuration utility developed by ICPDAS for the RS-M8194H controller. It is intended to perform motion control tasks and movement test on equipment without the need to first create customized applications. As the EzMove Utility is a Modbus client, it can be used to create and edit Macro Programs (MP), which can then be uploaded to the RS-M8194H. The EzMove Utility can also display and plot position/velocity of all four axes as well as display Modbus RTU messages for easy reference.


• API Library
The RS-M8194H API Library is composed of nine groups of functions, which can be utilized to edit Macro Programs (MP) and send Modbus RTU commands required to control or configure the I-8094H. The library provides users with the ability to simultaneously control a large number of RS-M8194H from the PC. DLL and libraries for the following development environments are provided:
• Visual C++
• BCB 5.0, 6.0
• C#, VB.NET
• Visual Basic 6.0


  • X-Y-Z Table
  • Fix-Pitch Stamping Machine
  • Transfer Machine
  • Spinner
  • Loader/Unloader
