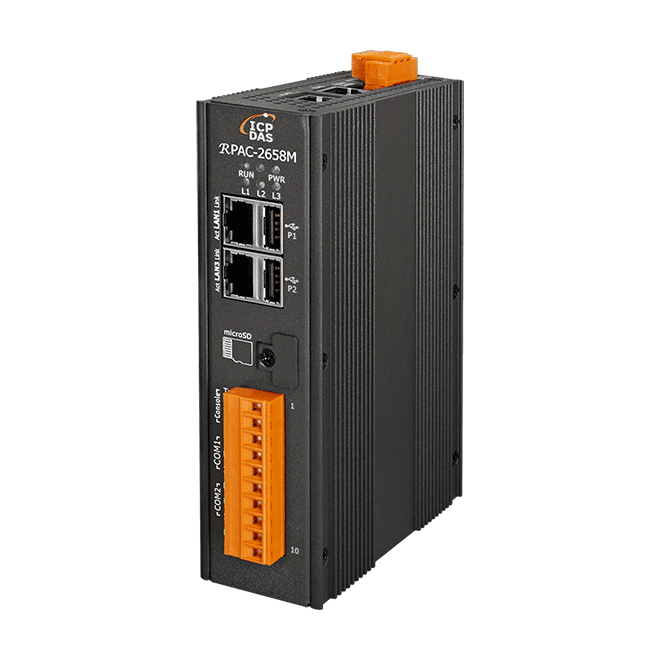

RPAC-2658M Win-GRAF PAC with Quad-core Cortex-A9 CPU with Linux Kernel 4.1.15


Key Features

  • Cortex-A9 CPU, 1.0 GHz, quad-core
  • 1 GB DDR3 RAM and 8 GB eMMC Flash
  • Linux Kernel 4.1.15
  • Embedded Win-GRAF SoftLogic (IEC 61131-3)
  • Support Dual PAC Redundant System
  • Real-Time Capability (Built-in Xenomai Real-Time Core Architecture)
  • 64-bit Hardware Serial Number for Software Protection
  • 10/100/1000M Three Ethernet Ports
  • 4 Serial Ports (RS-232/485/422)


The ICP DAS RPAC-2658M is the new generation Linux based Win-GRAF PAC (Programmable Automation Controller) from ICP DAS. This compact PAC is equipped with a Quad-core Cortex-A9 CPU (1 GHz) and running a Linux operating system. Using the built-in microSD, the RPAC-2658M can save application programs, files, and data.

The benefits of running Linux on a Win-GRAF PAC device includes real-time capability, achievable deterministic control, and allowing PAC can have a PC-like operating environment. The PAC is capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications and also supporting C, C++ to develop data management applications that can exchange data with Win-GRAF applications. So the application’s design is more convenient and more practical.



I/O Applications


  • Modbus TCP I/O


  • Modbus RTU I/O




Lead time: 5-7 working days from receipt of order.
