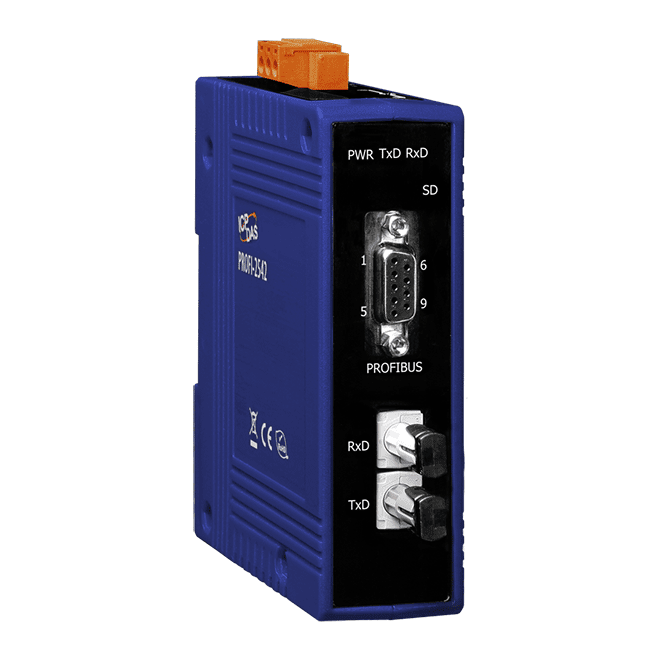

PROFI-2542 PROFIBUS to Single-mode Fiber Converter

Name: PROFI-2542 PROFIBUS to Single-mode Fiber Converter
Brand: simple
Availability: InStock

£250.00

Add to quote

Key Features

Support for PROFIBUS DP protocol
Detect transmission rate automatically(Max. 12Mbps)
Transparency on both side
Up to 32 stations per segment on PROFIBUS side
Fiber Wave Length: 1310 nm
Network Isolation Protection
3000VDC isolation protection on PROFIBUS side
4KV ESD Protection (contact for any terminal)

Description
Datasheets

Description

Fiber optic transmission medium is a good material to protect data transmission from EMI/RFI interference and has been used in harsh environment extensively. On the other hand, PROFIBUS is famous in industrial application. In order to solve the problem between different transmission medium, ICP DAS PROFI-2542 is specially designed for converting PROFIBUS signal to fiber optic cables.

The fiber length between two PROFI-2542 is can be up to 10km. The ICP DAS PROFI-2542 is the economic solution for applications which require protecting the data transmission from electrical exposure, surges, lightning or chemical corrosion.

Applications

Industrial Automation
Factory Automation
Process Automation

PROFI-2542_en
