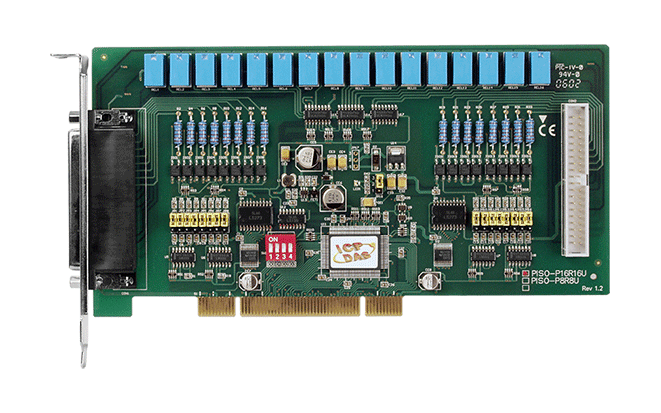

PISO-P16R16U Universal PCI with 16-ch Isolated DI & 16-ch Relay Output Board


Key Features

  • Universal PCI (3.3 V/5 V) Interface
  • Supports Card ID (SMD Switch)
  • 16-channel Relay Output
  • 16-channel Optically-isolated Digital Input
    • 3750 Vrms Photo-isolation Protection
    • Selectable DC Signal Input Filter
    • AC Signal Input with Filter


The ICP DAS PISO-P16R16U is a Universal PCI card supporting both the 3.3 V and 5 V PCI bus, and contains 16 photocoupler Digital Input channels that provide 3750 Vrms isolation protection, allowing the input signals to be completely floated so as to prevent ground loops and isolate the host computer from potentially damaging voltage spikes. The cards are also equipped with 16 Relay Output channels to enable the control of the ON/OFF state of external devices, drive external relays or small power switches, or activate alarms, etc.

The PISO-P16R16U card is fully compatible with the ICP DAS PISO-P16R16 card, and is designed as a direct replacement without requiring any modification to the software or the driver.

Lead time: 5-7 working days from receipt of order.
