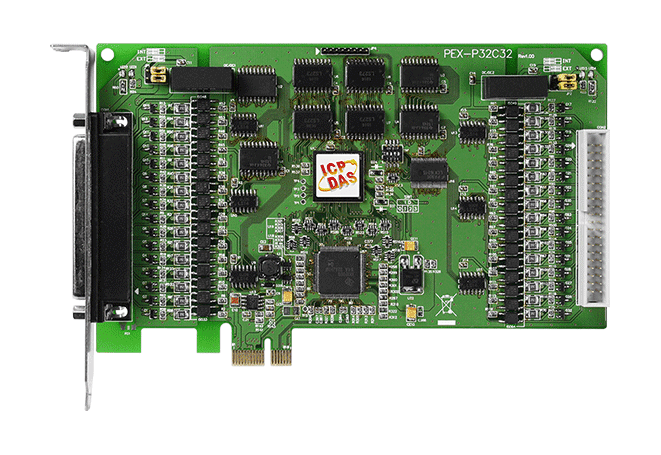

PEX-P32C32 PCI Express, 32-ch Isolated DI and 32-ch Open Collector Isolated (Sink, NPN) DO Board
- PCI Express x1 Interface
- Supports Card ID (SMD Switch)
- 32-channel Optically-isolated Digital Input
- Internal Power (3000 VDC Isolation) for Dry-Contact Input
- 32-channel Optically-isolated Digital Output
- PEX-P32C32: Current Sinking (Sink, NPN)
- Supports Output Status Readback (Register Level)
- 3750 Vrms Photo-isolation Protection
The ICP DAS PEX-P32C32 board series provides 32 optically-isolated Digital Input channels and 32 optically-isolated Digital Output channels, arranged into four isolated banks. Each input channel uses a photocoupler input that allows either an internal isolated power supply or an external power supply to be connected, and can be selected via a jumper.
Each Digital Output channel includes either a Darlington (PEX-P32C32). The input port may use either an external power source or can be powered from the Host PC via a DC/DC converter. The output port should use an external power source. The board helps eliminate ground loop problems and isolates the host computer from potentially damaging voltage spikes.
The PEX-P32C32 board also includes an onboard Card ID switch that enables the board to be easily recognized via software if two or more cards are installed in the same computer. The ICP DAS PEX-P32C32 board designed as an easy replacement for the PEX-P32C32 board without requiring any modification to either the software or the driver.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
Lead time: 5-7 working days from receipt of order.
