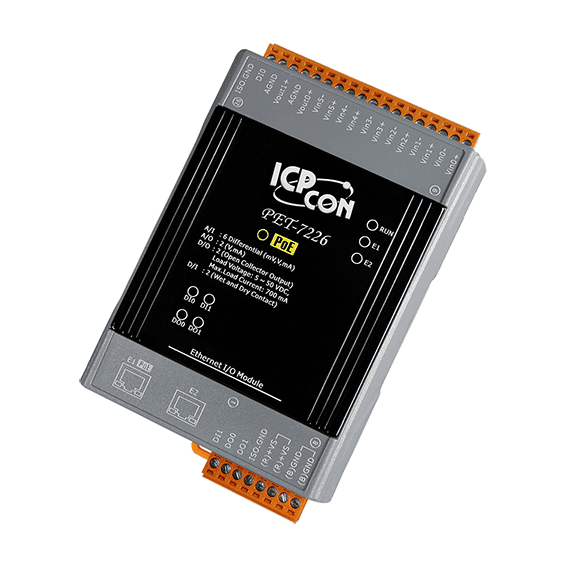

PET-7226 PoE Ethernet I/O Module with 2-port Ethernet Switch, 6-ch AI, 2-ch AO, 2-ch DI and 2-ch DO

£379.00

Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP & Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology with PoE function
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • Built-in I/O
    • AI: 6 Channels
    • AO: 2 Channels
    • DI/Counter: 2 Channels
    • DO: 2 Channels

CE UKCA RoHS WEEE

Description

The ICP DAS PET-7226 is a multi-function module with 6-channel analog inputs, 2-channel analog outputs, 2-channel digital inputs and 2-channel digital outputs. It provides various programmable analog inputs (+/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA), and analog outputs (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input/output can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper.
