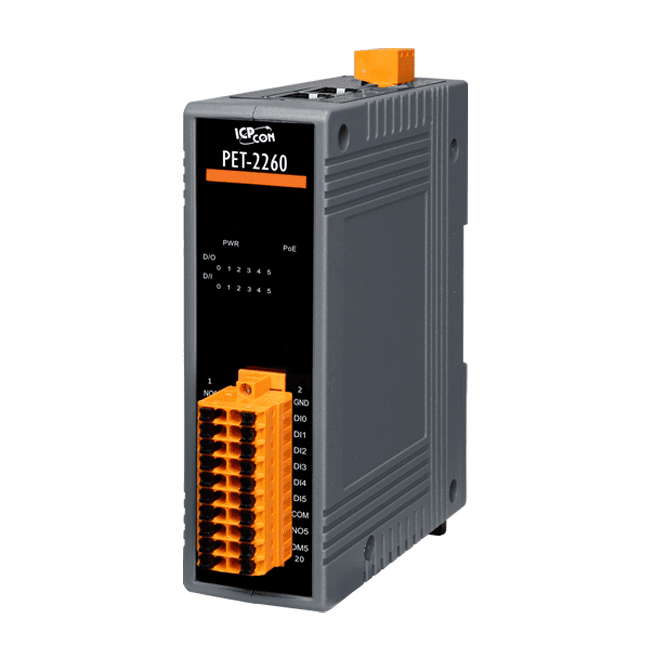

PET-2260 PoE Ethernet I/O Module with 6-ch DI & 6-ch Power Relay

£243.00

Key Features

  • Built-in Web Server & Power over Ethernet function
  • Support Modbus TCP/UDP and MQTT Protocols
  • 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
  • Dual Watchdog
  • I/O Pair Connection (Push and Pull)
  • Built-in I/O:
    • DI/Counter: 6 channels
    • Power Relay: 6 channels
  • LED Display to Indicate the I/O Status
CE UKCA RoHS WEEE

Description

Providing various digital I/O functions, the ICP DAS PET-2260 module is a Power over Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP and MQTT protocols. Modbus has become a de facto standard communications protocol in industry, and is now the most commonly available means of connecting industrial electronic devices. This makes the PET-2260 module perfect integration with the HMI, SCADA, PLC and other software systems.

The ICP DAS PET-2260 provides 6 wet contact Digital Input channels and 6 Form A electromechanical Relays. With 2 Ethernet ports, the PET-2260 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge and 3000 VDC I/O isolation are also provided to enhance noise protection capabilities in industrial environments. Each input channel can be used as a 32-bit counter. The power-on value and safe value of relay are configurable.

The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the ICP DAS PET-2260 module can poll the status of the local DI channels and then use the Modbus/TCP protocol to continuously write to the remote DO devices.

It is equipped with removable terminal block connector for easy and robust wiring in industrial situations, and features a powerful 32-bit ARM MCU to handle efficient network trafficking.
