PDS-782D-25/D6 Programmable (7x RS-232 and 1x RS-485) Serial-to-Ethernet Device Server with LED Display

£399.00

Add to quote

Key Features

  • Incorporate Serial Devices in an Ethernet network
  • “Virtual COM” Extend COM Ports
  • VxComm Utility supports 32/64-bit Windows 7 SP1/10/2012/2016
  • Supports Modbus TCP to RTU/ASCII Gateway
  • Powerful Programmable Device Server
  • Watchdog Timer suitable for use in harsh environments
  • Serial Port +/-4 kV ESD Protection Circuit
  • Self-Tuner ASIC Controller on the RS-485 Port
  • Built-in High Performance MiniOS7 from ICP DAS
  • Supports Latched D/I and Counter Functions
  • Palm-Sized with multiple Serial Ports
CE UKCA FCC RoHS WEEE

Description

The ICP DAS PDS-700 series is a family of Programmable Device Servers, also known as “Serial-to-Ethernet gateway”, that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PDS-700 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PDS-700 series is able to meet the demands of every network-enabled application.

The PDS-700 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PDS-700 up in just one second and gives you fastest responses.

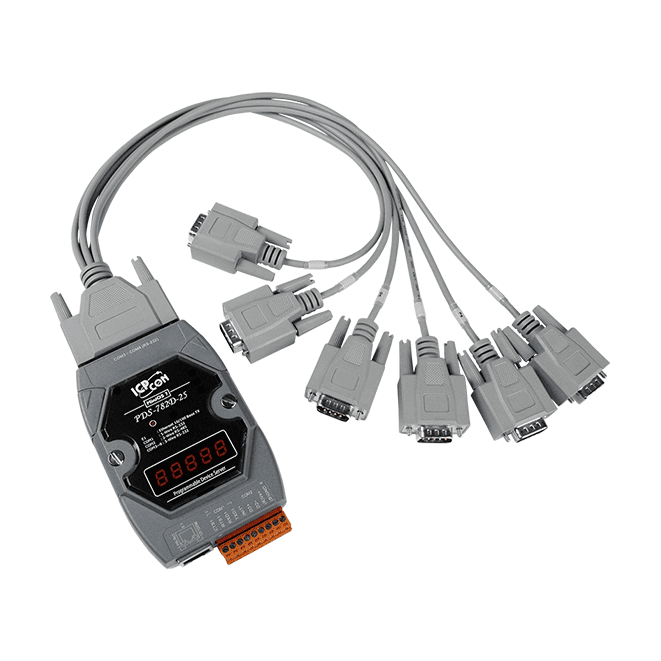

PDS-782(D)-25/D6 is equipped with 7 RS-232 ports and 1 RS-485 port. The CA-9-2505D cable converts the DB-25 connector of PDS-782(D)-25/D6 to 6 Male DB-9 connectors for easy wiring with serial devices that have female DB-9 connectors

PDS-782-25_D6_en
