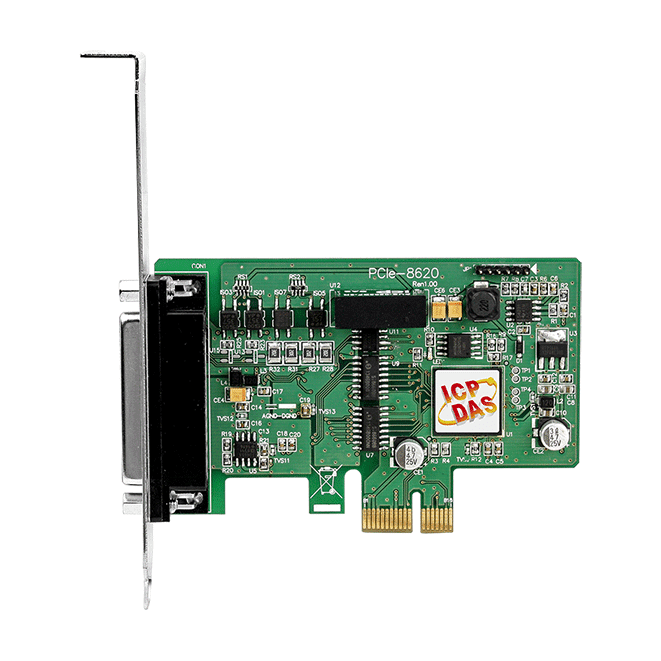

PCIe-8620 PCI Express, 200 kS/s, 8-ch, 16-bit Simultaneously Sampled AI Board with 4-ch Isolated DIO


Key Features

  • PCI Express x1 Interface, Full-profi le or Low-profi le
  • 4-channel Isolated Digital Input
  • 4-channel Isolated Digital Output
  • 8 Single-ended Analog Input channels
    • Synchronous Sample and Hold
    • Built-in MagicScan Controller
    • Analog Input Range: ±10 V, ±5 V
    • 16-bit, 200 kS/s Sampling Rate for each channel
    • Hardware FIFO for Analog Input with a total of 2048 Samples


The ICP DAS PCIe-8620 is a bus-type, isolated high-speed Analog Input board with isolated DI/O. The simultaneously sampled AD offers a mix of up to 8 single-ended 16-bit Analog Input channels with a 2 k Sample hardware FIFO. All channels feature a programmable input range of ±10 V or ±5 V with a sampling rate up to 200 kS/s per channel.

The PCIe-8620 provides 4 isolated Digital Input channels and 4 isolated Digital Output channels. The isolation range of the board has been increased to 2500 VDC, making it one of the most cost-effective solutions when considering isolated AD with DI/O boards.

The ICP DAS PCIe-8620 also includes a second-order anti-alias analog filter where the -3 dB frequency for the ±5 V input range is typically 15 kHz, and is typically 23 kHz for the ±10 V input range.

The PCIe-8620 is a low-profile PCI Express board that is suitable for computers with limited space, and is also suitable for standard-size computers since the board is shipped with both full-height and low-profile brackets.

Lead time: 5-7 working days from receipt of order.
