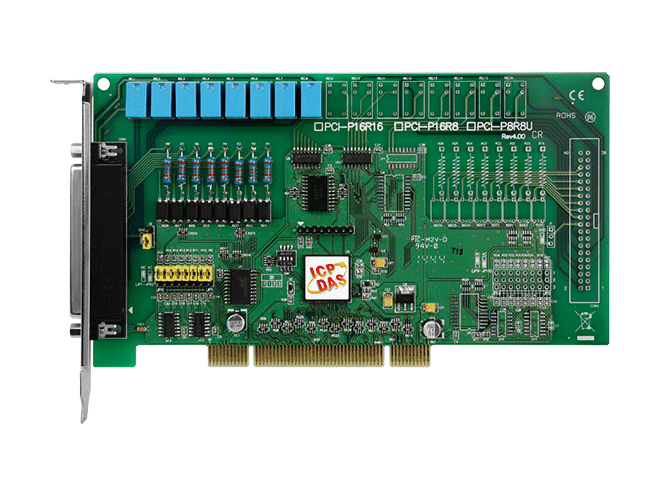

PCI-P16R16U Universal PCI, 16-ch Isolated DI and 16-ch Relay Output Board

£218.00

Add to quote

Key Features

  • Universal PCI (3.3 V/5 V) Interface
  • 16-channel Optically-isolated Digital Input
  • 16-channel Relay Output
  • Selectable DC Signal Input Filter
  • AC Signal Input with Filter
  • 5000 Vrms Photo-isolation Protection
CE UKCA FCC RoHS WEEE

Description

The ICP DAS PCI-P16R16U universal PCI card supports 3.3 V/5 V PCI bus. These cards contain 16 photo-coupler DI channels that provide 5000 Vrms isolation protection, allowing the input signals to be completely floated so as to prevent ground loops. They are also equipped with 16 Relay Output channels that can be used to control the ON/OFF state of external devices, drive external relays or small power switches, or activate alarms, etc.

The PCI-P16R16U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

Accessories

Lead time: 5-7 working days from receipt of order.

PCI-P8R8U_PCI-P16R16U_en
