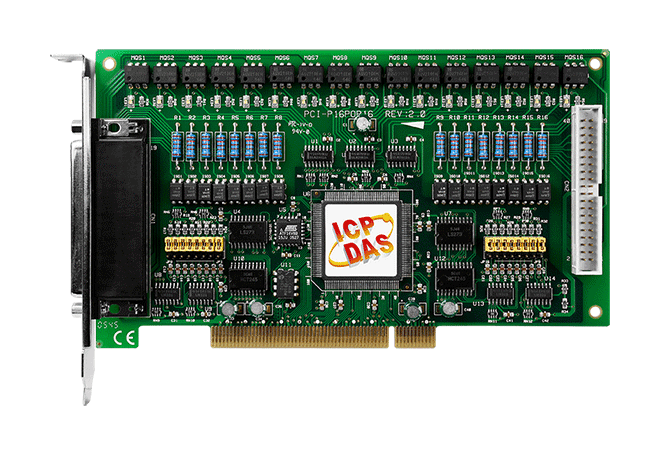

PCI-P16POR16U Universal PCI with 16-ch Isolated DI & 16-ch PhotoMOS Relay Output Board


Key Features

  • Universal PCI (3.3 V/5 V) Interface
  • LED Power Indicator
  • 16-channel Optically-isolated Digital Input
    • 5000 Vrms Photo-isolation Protection
    • Selectable DC Signal Input Filter
    • AC Signal Input with Filter
  • High-speed DI/O Operation
  • 16-channel PhotoMOS Relay Output
    • Long-life, High-reliability PhotoMOS Relay
    • Low leakage current when PhotoMOS Relay is OFF
    • No Acoustical Noise
    • No Contact Bounce or Sparking


The ICP DAS PCI-P16POR16U Universal PCI card supports the 3.3 V/5 V PCI bus and provides 16 optically-isolated Digital Input channels and 16 PhotoMOS Relay Output channels. Both the isolated DI channels and the PhotoMOS Relay channels use a short optical transmission path to transfer an electronic signal between elements of a circuit and keep them electrically isolated.

The PCI-P16POR16U provides 5000 Vrms isolation protection for the DI channels, allowing the input signals to be completely floated so as to prevent ground loops and isolate the host computer from potentially damaging voltage spikes. The PhotoMOS Relays are used where it is necessary to control a circuit using a low-power signal, with complete electrical isolation between the control and the controlled circuits), or where several circuits must be controlled by a single signal.

This card can be used in a variety of applications, such as controlling the ON/OFF state of external devices, driving external relays or small power switches, activating alarms, contact closure, or sensing external voltages or switches, etc.

The ICP DAS PCI-P16POR16U cards also include an onboard Card ID switch that enables the board to be recognized via software if two or more cards are installed in the same computer. The PCI-P16POR16U is designed as a direct replacement for the ICP DAS PCI-P16POR16 without requiring any modification to the software or the driver.
