PCI-822LU Universal PCI, 250 kS/s, 32-ch, 12-bit AI Multifunction Board (8 K WORD FIFO)
- Universal PCI (3.3 V/5 V) Interface
- Supports Card ID (SMD Switch)
- 32 Single-ended/16 Differential Analog Input Channels
- 12-bit 250 kS/s High-speed AD
- Built-in MagicScan Controller
- Supports Software-trigger and Pacer-trigger
- 8 K-sample Hardware FIFO
- 2-channel, 16-bit Analog Output
- 32-channel programmable DI/O
- Pull-high and Pull-low Resistors for DI Channels
- Supports Digital Output Status Readback (Register Level)

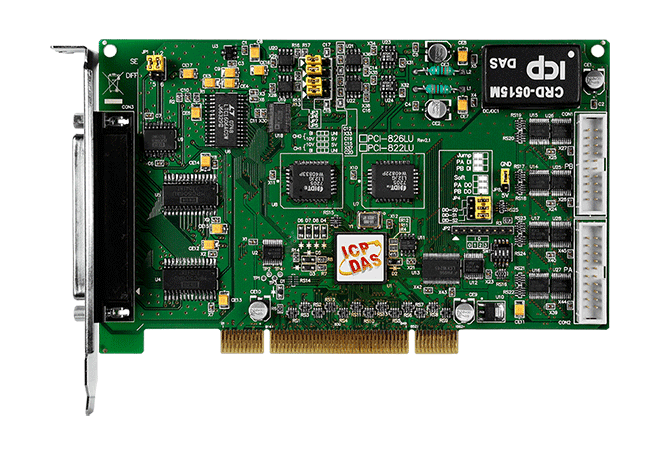

The ICP DAS PCI-822LU is a high performance multifunction card providing high-speed analog I/O and digital I/O functions. The PCI-822LU card has a universal PCI interface supporting both 3.3 V and 5 V PCI bus. This card features a continuous, 250 k Samples/Sec 12-bit resolution A/D converter, 8 K samples hardware FIFO, 2-ch 16-bit D/A converter, 32-ch programmable digital I/O and DO read back. The PCI-822LU provides either 32-ch single-ended or 16-ch differential AIs which are jumper selectable. The ICP DAS PCI-822LU is equipped with a high speed PGA featuring programmable gain controls (1,2,4,8).
The PCI-822LU has the Card ID switch and pull-high/pull-low resisters for DI on board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PCI-822LU cards in one computer. The pull-high/pull-low resisters allow specifying the DI status; when the DI channels are unconnected, the DI status will remain in high or low status other than floating.
The PCI-822LU provides two programmable trigger methods: software trigger and pacer trigger. The A/D channel scan function of ICP DAS PCI-822LU is so amazing, we call it MagicScan. The MagicScan controller takes out most works of getting A/D value such as select channel, set gain, settling time, trigger ADC and get data. With the built-in MagicScan and interrupt features, it is effectively off-loading your CPU from the job. Even in channel scan mode, it can have different gain code for each channel, and the sampling rate can still reach 250 kS/s totally. The PCI-822LU is suitable for high end applications.
