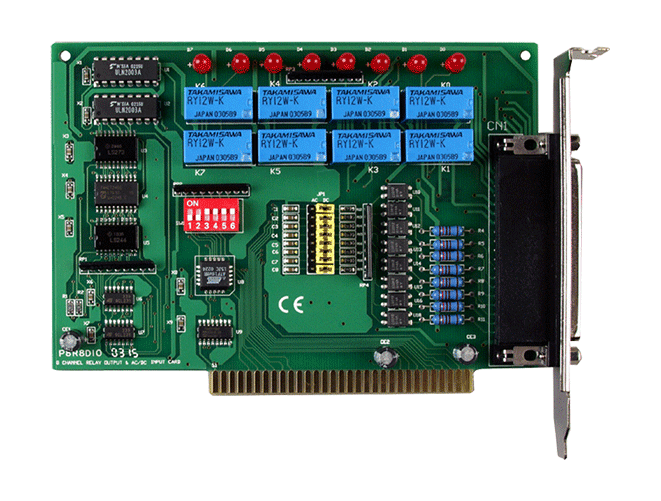

P8R8DIO ISA Bus, 8-ch Isolated DI & Relay Output Board

Name: P8R8DIO ISA Bus, 8-ch Isolated DI & Relay Output Board
Brand: simple
Availability: InStock

£95.00

Add to quote

Key Features

Relay output Channel
Isolated DI channels
AC/DC signal input ; AC signal input with filter
Connector pin assignment is compatible to 725 series
Power Requirements : 200 mA @ +5 V (max.) ; 260 mA @ +12 V (max.)
LED indicator for each relay output state

Description
Datasheets

Description

The ICP DAS P8R8 DIO is an 8 isolated input and 8 relay output interface board designed for control and sensing applications. This interface board is easily installed in any PC/AT/XT or compatible computer. The P8R8 DIO Provides 8 electromechanical relay outputs and 8 Isolated inputs. The P8R8 DIO can be used in various applications including load switching, external switching, and contact closure.

Applications

Factory Automation
Product Test
Laboratory Automation
Security Control

Lead time: 5-7 working days from receipt of order.

P8R8DIO_P16R16DIO_en
