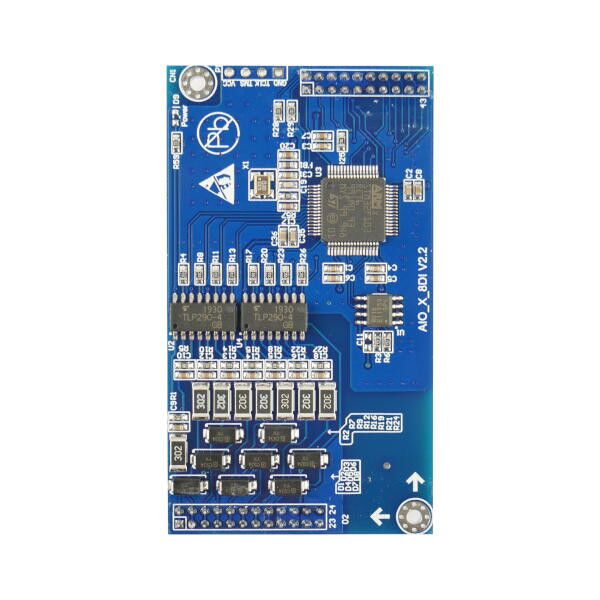

ODOT AIO-X1248 8-ch Digital Input/24VDC/Source or Sink

ODOT AIO-X1248 8-ch Digital Input/24VDC/Source or Sink

£20.00

Add to quote

Key Features

• Number of channels: 8-ch two-way input
• Indicator Light: 8 green channel input indicators
• Turn-on Voltage: High input: Min.10Vdc to Max.28Vdc (common: 0Vdc); Low input: Min.0Vdc to Max.14Vdc (common: 24Vdc)
• Turn-off Voltage: High input: Max.5Vdc (common:0Vdc); Low input: Min.19Vdc (common: 24Vdc)
• Turn-on Current: Max.15mA/channel@28V
• Input Resistance: >1.8kΩ
• Sampling Frequency: 500Hz
• Counting Frequency: <200Hz

Description

The ODOT AIO-X1248 is a 8-channel digital input, source and sink two-way input with 24V/0V input voltage range that is specifically designed for used with the ODOT AIOBOX-16/32 I/O system. This module can collect digital output signals of field device (dry contact or active output) and each input channel of the module supports 32-bit counter, counting frequency of 200Hz.



AIOBOX
