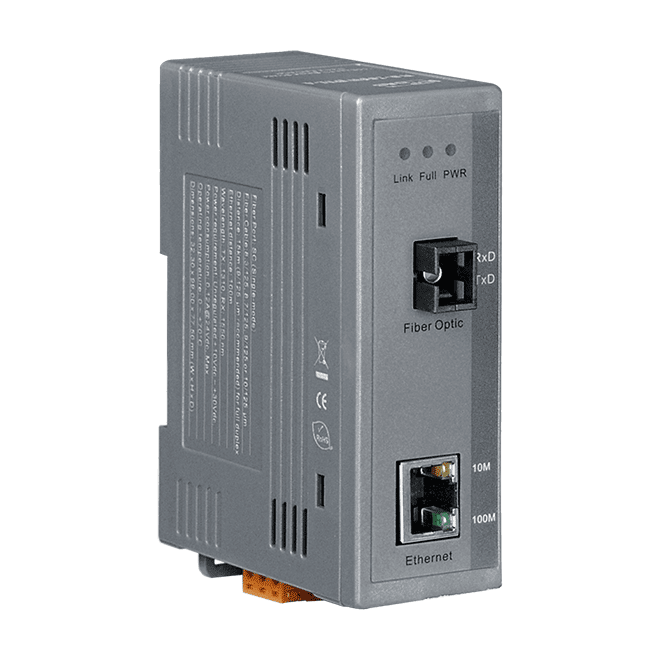

NS-200WDM-B Industrial Single-Strand 10/100 Base-T(X) to 100 Base-FX Media Converters

Using the fiber optic medium for Ethernet applications has become more popular due to fiber optic’s excellent physical features, especially for long distance networks. However, fiber optic cable is very expensive, so if we can apply a solution that uses only 1 cable instead of 2, the infrastructure cost can be cut in half.

The ICP DAS NS-200WDM Series of Single-Strand Fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode, fiber optic line. This not only doubles your existing bandwidth, but also effectively reduces the cost of creating a new fiber optic infrastructure.

With a pair of NS-200WDM series products (NS-200WDM-A and NS-200WDM-B), you can double the utilization of your existing, costly fiber optic cable, and save 50% of the cost of a newly installed fiber optic application. It contains “soft start” function with overload protection, high-low voltage protection.

The width of the NS-200WDM is just 32mm, so it can be used where space is important.

Important Note : You must purchase both NS-200WDM-A and NS-200WDM-B since these products work as a pair.
