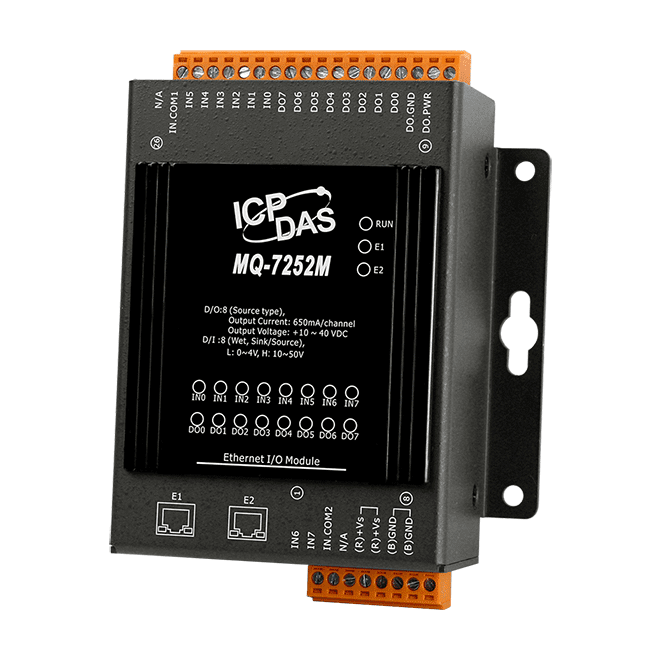

MQ-7252M MQTT I/O Module with 8-ch DI & 8-ch DO


Key Features

  • Built-in Web Server
  • Web HMI
  • Support for MQTT Protocol
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • Built-in I/O
    • DI: 8 Channels
    • DO: 8 Channels


The ICP DAS MQ-7252M is an Ethernet I/O device equipped with 8-ch DI & 8-ch DO, and supports MQTT protocol for connecting with a variety of digital sensors in Industrial Internet of Things (IIoT) applications. A web-based user interface is provided to configure the module, monitor the network connection status and I/O status, and control digital output channels on the module via web browser on a mobile device or computer.

The MQ-7252M features optical isolation for 2500 VDC of transient over-voltage protection, but doesn’t provide channel-to-channel isolation. Each output channel can drive up to 650 mA load, together with configurable power-on value and safe value. This MQTT protocol I/O module can be safely used in applications where hazardous voltages are present.
