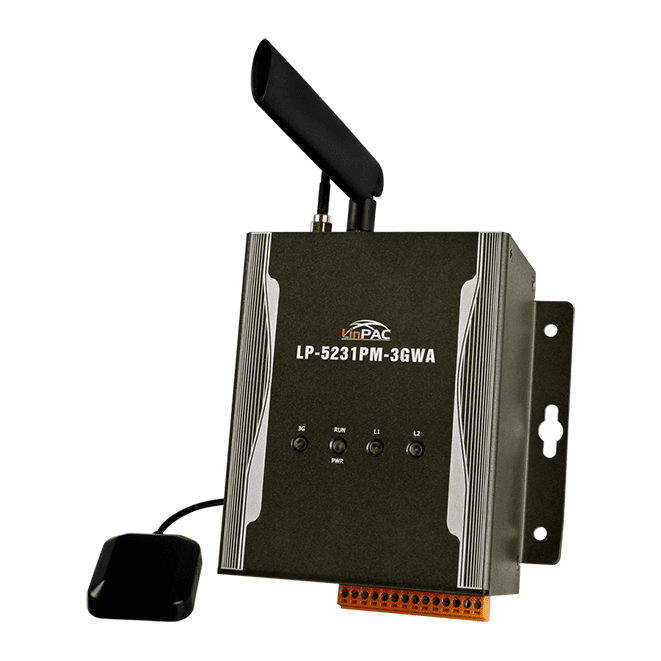

LP-5231PM-3GWA 3G Linux kernel 3.2.14 Based Metal PAC with Cortex-A8 CPU, 1 LAN Port


Key Features

  •  Cortex-A8 (1.0 GHz) CPU
  • Linux kernel 3.2.14 Inside
  • Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
  • 64-bit Hardware Serial Number
  • I/O Expansion Bus: XV-Board
  • Industrial Tri-band 3G module
  • 3G modem


The ICP DAS LP-5231PM-3GWA is equipped with a Cortex-A8 CPU (1 GHz) and running a Linux operating system (Linux Kernel 3.2.14) that is a compact and real-time OS used to quickly create time critical and high performance applications.

The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in Flash and microSD, the LinPAC can save application program, image file and data.

The 3G module work on frequencies of WCDMA 2100/1900/900/850 MHz and GSM 850/900/1800/1900 MHz. These modules utilize the 3G network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. These modules has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of theirs, the systems can be SMS and GPRS or 3G connection applications with our PAC.

Lead time: 5-7 working days from receipt of order.
