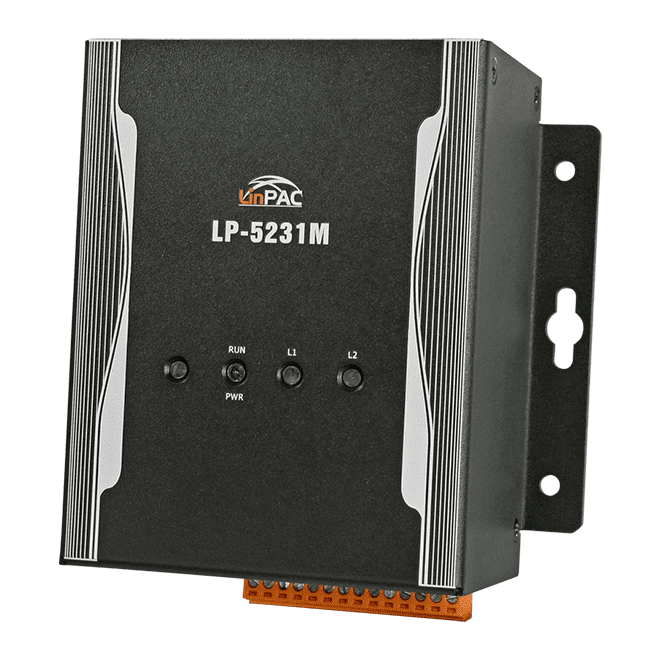

LP-5231M Linux kernel 3.2.14 Based Metal PAC with Cortex-A8 CPU 1 LAN Port


Key Features

  •  Cortex-A8 (1.0 GHz) CPU
  • Linux kernel 3.2.14 Inside
  • Real-Time Capability
  • 64-bit Hardware Serial Number for Software Protection
  • I/O Expansion Bus (XV-Board)
  • 10/100/1000 Mbit/s Ethernet Port
  • 4 Serial Ports (RS-232/485)


The ICP DAS LP-5231M is equipped with a Cortex-A8 CPU (1 GHz) running a Linux operating system (Linux Kernel 3.2.14), a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and powerful software including development tools. Linux Kernel 3.2.14 is a compact and real-time OS used to quickly create time critical and high performance applications.

The main advantage of the LP-5231M is its high quality control system, including its stability, small core size, optional I/O expansion board, support for Web services (Web/SFTP/SSH server). Using the built-in Flash and microSD, the LinPAC can save application program, image file and data.

Lead time: 5-7 working days from receipt of order.
