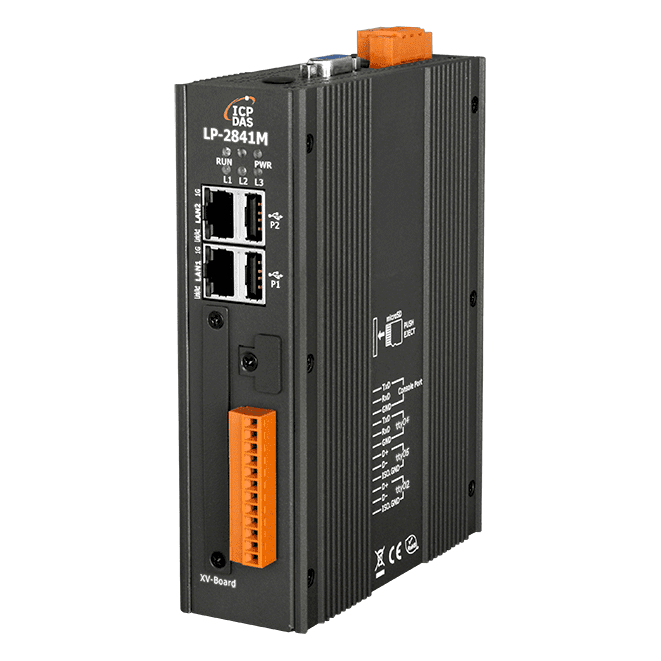

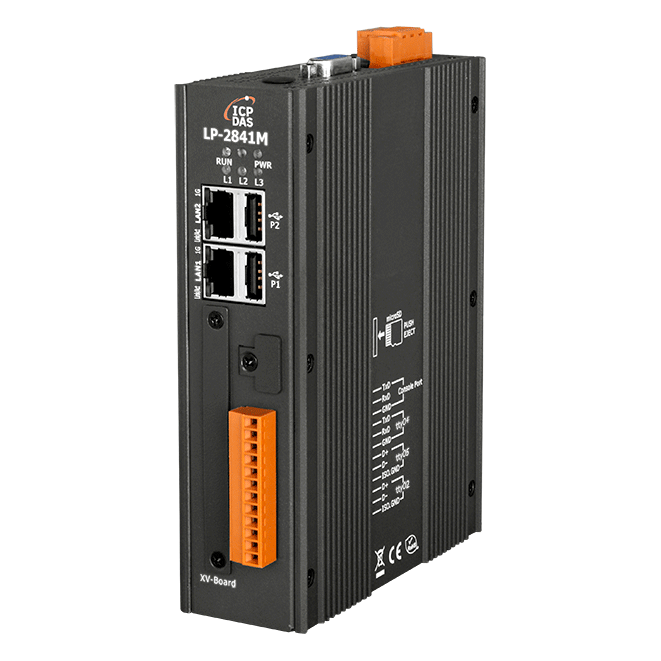

LP-2841M Linux Kernel 5.4.70 Based PAC with Cortex-A53 CPU and 2 LAN Ports


Key Features

  • Cortex-A53 (1.6 GHz, quad-core) CPU
  • Linux kernel 5.4.70 Inside
  • 2 GB RAM and 8 GB eMMC
  • Real-Time Capability
  • 64-bit Hardware Serial Number for Software Protection
  • I/O Expansion Bus (XV-Board)
  • 10/100/1000M Dual Ethernet Port
  • 4 Serial Ports (RS-232/485)


The ICP DAS LP-2841M is equipped with a Cortex-A53 (1.6 GHz, quad-core) CPU running a Linux operating system (Linux Kernel 5.4.70), a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and powerful software including development tools.
Linux Kernel 5.4.70 is a compact and real-time OS used to quickly create time critical and high performance applications.

Main advantage of the LP-2841M is its high quality control system, including its stability, small core size, optional I/O expansion board, support for Web services (Web/SFTP/SSH server).

The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in Flash and microSD, the LinPAC can save application program, image file and data.

Lead time: 5-7 working days from receipt of order.
