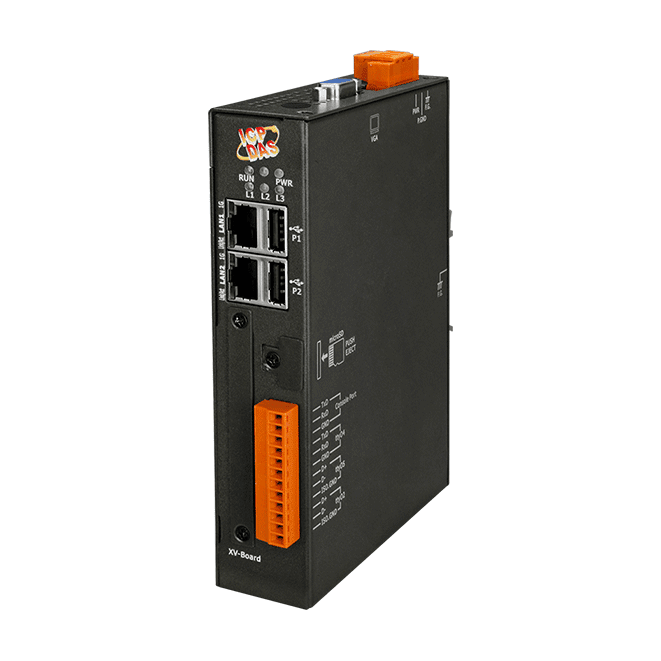

LP-2241M Linux Kernel 3.2.14 Based PAC with Cortex-A8 CPU and 2 LAN Ports


Key Features

  • Cortex-A8 (1.0 GHz) CPU
  • 512 MB RAM and 512 MB Flash
  • Linux kernel 3.2.14 Inside
  • Real-Time Capability
  • 64-bit Hardware Serial Number for Software Protection
  • I/O Expansion Bus (XV-Board)
  • 10/100/1000M Dual Ethernet Port
  • 4 Serial Ports (RS-232/485)


The ICP DAS LP-2241M is equipped with a Cortex-A8 CPU (1 GHz) running a Linux operating system (Linux Kernel 3.2.14), a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and powerful software including development tools. Linux Kernel 3.2.14 is a compact and real-time OS used to quickly create time critical and high performance applications.

The main advantage of the LP-2241M is its high quality control system, including its stability, small core size, optional I/O expansion board, support for Web services (Web/SFTP/SSH server).

The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in Flash and microSD, the LinPAC can save application program, image file and data.

Lead time: 5-7 working days from receipt of order.
