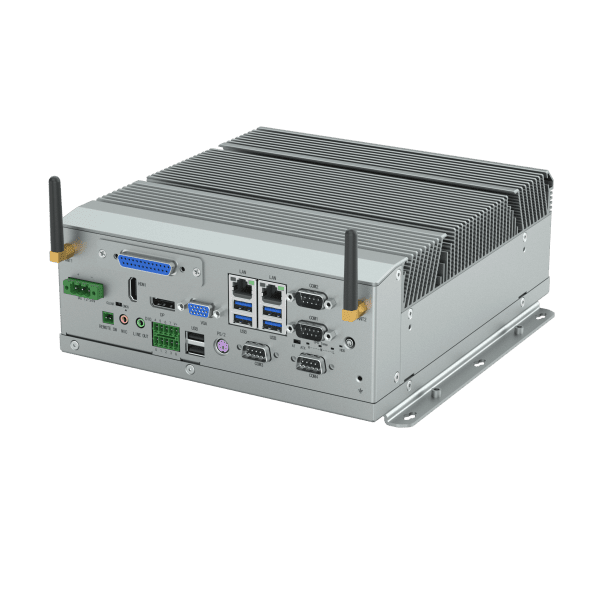

KMDA-3610-S001-G4 Fanless Box PC with optional Intel® Skylake-S or Kabylake-S G4400 CPU, 4G DDR4, 2*G-LAN, 4*COM, 4* USB3.0, 3*USB2.0, 8+16bit DIO ,1*PS2, 1*Mini PCIe & DP/HDMI/VGA, Audio/Mic

Key Features

  • Aluminum chassis, fanless design
  • Intel® Kabylake-S or Skylake-S CPU
  • 2*DDR4 2400/2133MHz SODIMM, Up to 32GB
  • DP+HDMI+VGA, Optional 3 independent displays
  • 2*LAN, 4*USB3.0, 3*USB2.0, 4*COM,(8+16)bit DIO
  • 1*Mini PCIe(PCIe+USB),1*M.2 2242 B-Key
  • 1*mSATA, 2*2.5″ SATA, suppprtRaid0,1(Q170)
  • Support Intel® iVpro andTPM2.0
  • DC 12~24V Wide Power Input

CE UKCA FCC RoHS WEEE

Description

The KMDA-3610 series are high-performance, fanless embedded computers that is powered by Intel® Skylake-S or Kabylake-S CPU. The KMDA-3610 series is equipped with 2*DDR4 2133/2400MHz dual channel memory, up to 32GB. DP1.2+HDMI1.4b +VGA. 2*GbE LAN and 4*USB3.0 ports.

The 1*Mini PCIe supports 4G and Wifi/BT. 2*2.5″ SATA HDD/SSD, 1*mSATA, 1*M.2 are used for storage. With DC 12~24V wide power input, high performance and multi IO interface, the KMDA-3610 series is ideal for industrial applications such as intelligent transportation, video security and machine vision.

Our range of industrial fanless embedded computers are ruggedly designed to meet mission-critical applications with harsh environmental conditions including extreme temperatures, high shock and vibration, and protection from water splash and dust.

Our wide range of industrial fanless embedded computers come with a two year standard warranty period.
