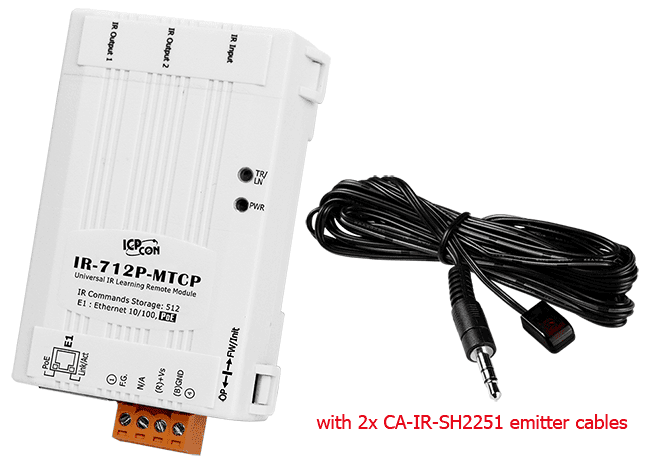

IR-712P-MTCP-5 Universal PoE IR Learning Module (2x IR outputs, 512x IR cmds) with 2x CA-IR-SH2251-5 emitter cables

£189.00

Features

  • 2 IR output channels
  • 1 IR learning input
  • Number of IR commands that can be learned and stored: 512
  • Supports IR remote control carrier frequencies: 33, 36, 37, 38, 40 and 56 kHz.
  • Support Ethernet interface
  • Supports PoE power supply (IEEE 802.3af, Class 1)
  • Support Modbus  TCP/UDP communication protocol
  • Provides ASCII string commands (DCON on TCP/UDP) to control the emission of IR commands
  • Includes 2x CA-IR-SH2251-5 IR emitter cables.
  • (Remote control range: CA-IR-SH2251-5 is 125% of CA-IR-SH2251)
CE FCC RoHS WEEE

Description

The ICP DAS IR-712P-MTCP is a universal infrared learning remote control module that can learn infrared remote control commands for various electronic devices and store the learned commands in the module or in files.

The IR-712P-MTCP has 2 independent IR output channels, which can control multiple devices individually or simultaneously. The Ethernet communication interface of the module adopts Modbus TCP/UDP communication protocol, which makes it more flexible to expand and control the module. With the included IR tool software, you can easily plan, learn, test and save IR remote control commands.

The ICP DAS IR-712P-MTCP can completely replace the function of the remote control and be integrated with Modbus master equipment such as PAC, PLC and PC. It is especially suitable for smart home and building automation applications.

Applications

  • home entertainment equipment
  • Smart meeting room
  • surveillance system
  • Electronic classroom services
  • Lighting scene control
  • Smart Home and Building Automation

IR-712(P)-MTCP_datasheet_en
