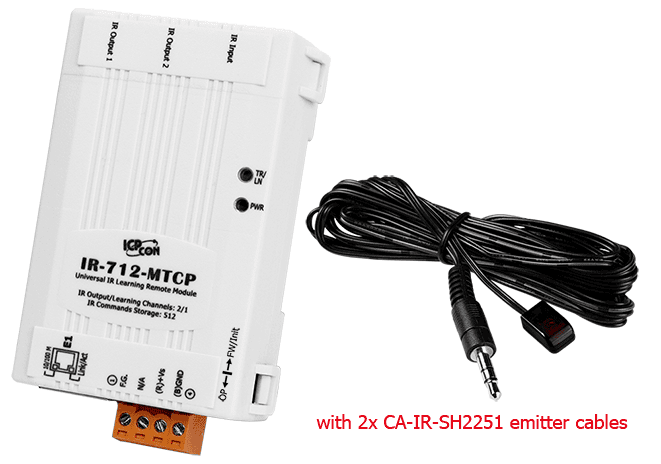

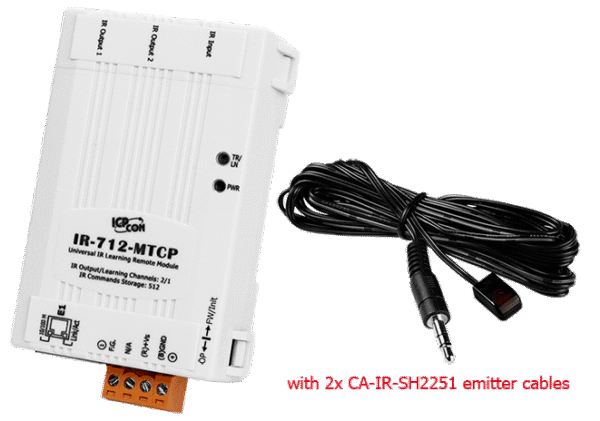

IR-712-MTCP Universal IR Learning Module (2x IR outputs, 512x IR cmds) (Ethernet) (RoHS) Includes 2x CA-IR-SH2251 emitter cables



  • 2 IR output channels.
  • 1 IR learning input
  • IR command capacity: 512
  • Supports IR carrier frequencies: 33、36、37、38、40 and 56 kHz.
  • Supports Ethernet interface.
  • Supports Modbus TCP/UDP protocol to emit IR commands.
  • Provides ASCII String Command (DCON over TCP/UDP) to emit IR signal.
  • Includes 2x CA-IR-SH2251 IR emitter cables.
    (Remote control range: CA-IR-SH2251 is 80% of CA-IR-SH2251-5)


The ICP DAS IR-712-MTCP is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file.

The IR-712-MTCP supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied Ethernet interface with Modbus TCP/UDP and DCON protocols provides flexible expansion and control on the modules. Besides, the IR utility provides easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus client devices (e.g. PAC, PLC, PC), IR-712-MTCP is well-suited for smart home and building automation.


  • Home Entertainment Devices
  • Video Conferencing System
  • Surveillance System
  • e-Classroom service
  • Lighting Scenario Control
  • Home and Building Automation
