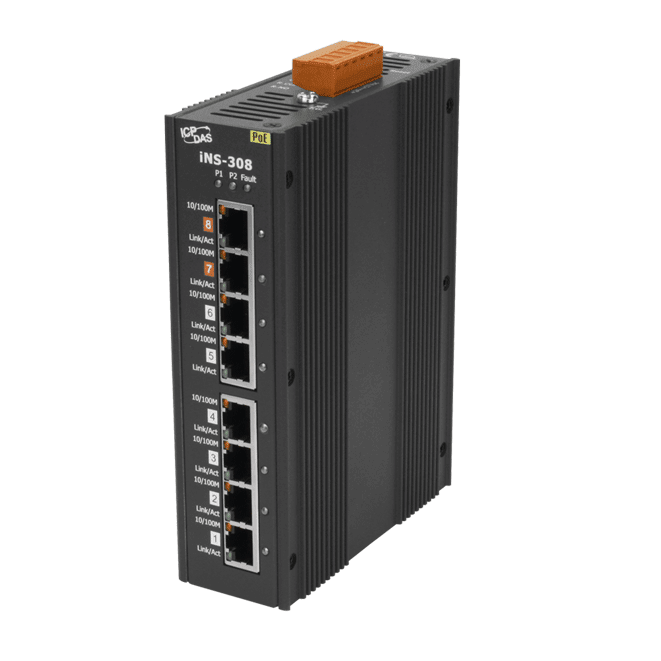

iNS-308 8-port 10/100 Mbps PoE(PSE) IoT Switch

£379.00

Key Features

  • 8 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
  • Up to 30 watts per PoE port at 24 ~ 57 VDC Power Input
  • Ethernet Bypass for Port 7 & Port 8
  • Power Management and Schedule Control for each PoE port
  • Web GUI configuration and management
  • SNMP_v2c Supports
  • Modbus Function Supports
  • MQTT Supports
CE UKCA RoHS WEEE

Description

The ICP DAS iNS-308 is 8-Port IoT Switch that supports auto-negotiation, flow control and auto MDI/MDI-X function, providing up to 30W per port and independent PoE status LED can easily and quickly eliminate abnormalities.

The iNS-308 also  support simple and friendly UI, the user can manage the power supply status of the PoE device through the web page remotely. It also supports the power scheduling function so that the device will automatically turn off the power when it is not needed in order to achieve the purpose of energy saving.

The ICP DAS iNS-308 features redundant & boost power design for use PoE application without 48V Power supply.

Web GUI Management Interface
The iNS-308 IoT Switch Support Web GUI management interface, easy and quick to confi gure and monitoring Ethernet status, PoE Voltage, Current and Consumption, Provide customers with new options for intelligent management.

Power On/Off Schedule
An individual power on/off schedule is provided for each PoE port of the iNS-308. Auto turning off and turning on the devices at selected times can save manpower, time costs, and power when the devices are not in used.

Power Reset Schedule
The PoE powered devices may become slow or inoperable if they are left on for too long. A simple reset can help you to solve most problems most of the time. The iNS-308 offers an individual power reset schedule for each PoE port, you can configure the schedule through a web browser to reset your devices regularly and keep them working in good condition.

Redundant Power Input
Both power inputs can be connected simultaneously to live DC power sources. If one power source fails, the other live source will act as a backup, and automatically supplies all of iNS-308 power needs.
If operating at high loading (total PoE Loading over 60w) suggest used dual input power supply.

Ethernet bypass application
Supports Daisy chain technology, when iNS-308 Power fail, Port 7 & Port 8 will bypass Ethernet signal ensure the transmission of important data.
