IKVM-210-16M 17″ 16-Port Combo VGA LCD IP KVM Switch


Key Features

  • Integrated 17” LCD monitor and keyboard/touchpad module within 1U chassis
  • Standalone machine controls up to 16 sets of computers
  • Up to 2 levels can be cascaded and up to 256 computers can be controlled.
  • Port Select Panel status LEDs give a clear indication of the active computers
  • Mouse touch board with two function buttons
  • Full-size 100-key keyboard with integrated number pad
  • Front panel with lock to prevent damage by accident
  • Two-layer password security protection
  • DES, AES and 3DES for data encryption
  • Remotely control PC via TCP/IP and a built-in 10/100/1000Mbps Ethernet port
  • High Video Quality: Resolution up to 2048 x 1536 (local side) or 1920 x 1080 (remote side)
  • Multiplatform support — Windows, Linux and Sun
  • Multibrowser support (IE, Chrome, Firefox)


Control All Your PCs via IP-based KVM

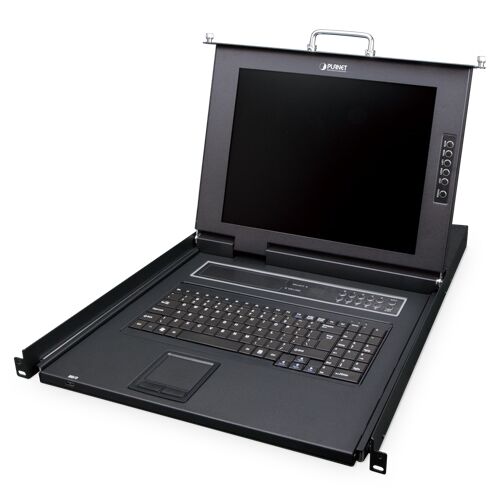

PLANET IKVM-210-16M Combo VGA LCD IP KVM Switch comes with a rack-mountable keyboard, 17″ LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the IKVM-210-16M can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers.


Easy to Install

With the uniquely separate rail design, it helps to install the IKVM console easily. Moreover, when there is a need to maintain the console, the administrator can easily uninstall the device without affecting the server above or below.

Multiple Operating Systems Supported

The IKVM-210-16M is the most cost-effective and simple solution for controlling a group of PCs in the network. Multiple computers can be managed via only one single set of monitor, keyboard and mouse directly. No software drivers or system configuration are required. iMac, Power Mac and Sun systems are also supported.

Remote Key Combination

You could set the multiple key combinations at IKVM Series. When you open IKVM software at remote client,  you could use these key combinations to control these local PCs with a different OS via the internet.

Computer Switching

There are three convenient methods to access any computer connected to the installation:

  • Port select button
  • Hotkeys on keyboard
  • OSD (on screen display)


Security Protection

The two-level password security only authorizes up to one user and an administrator with a separate profile for each user. Data encryption options include AES, DES and 3DES, and they can be selected for keyboard, mouse and video signals.

Powerful Mouse/Keyboard Support

In the present computer applications, a mouse has become an indispensable device. The IKVM-210-16M fully supports all models of PS/2 mice on the market. The IKVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the IKVM for all kinds of servers, computers or their combination.
