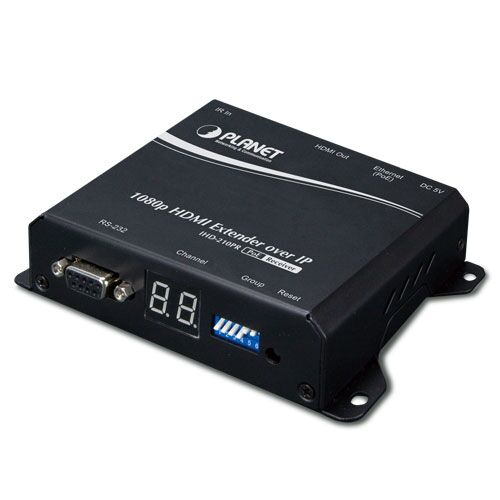

IHD-210PR High Definition HDMI Extender Receiver over IP with PoE

Description

PLANET IHD-210 HDMI Extender over IP with PoE delivers a great Full-HD video distribution solution such as bringing an efficient and effective advertising deployment. The IHD-210 series is the combination of the transmitter, IHD-210PT, and the receiver, IHD-210PR. They can distribute HD digital content from multiple sources to practically any number of remote displays on a LAN and deliver ultra high-quality 1080p HDMI video broadcast over IP network. It not only offers vivid 1080p full motion video, but also ensures the sharp images and text give the viewers the maximum visual effect and ease of reading.

By cascading multiple Ethernet switches as the backbone of the IHD-210 series, it allows displays to be distributed far away from the source devices while sustaining consistent 1080p video and audio quality. The video sources can be rack centralized, decentralized or even a mixture of both. It thus increases the flexibility, scope and scalability of audio and video distribution via the Ethernet networks.

IR Extension for Controlling Video Source
The IHD-210 series is a perfect solution for audio and video signal extension via the existing LAN. Designed with IR transmitter and receiver interface, it allows users to control the video source at the terminal destination. The IHD-210 series also features bi-directional IR extension and RS232 pass-through allows the user to cascade the system enabling them to extend the transmission distance without signal loss or delay. Its numerical LED indication enables users to recognize immediately the current group ID. It also supports HDMI Local Output function for checking video source conveniently. Besides, with PoE function, there is no additional power supply needed, and the IHD-210 series thus reduces the complexity of cable installation.

Exclusive Video Transmission by IGMP Snooping Technology
One IHD-210PT in local site can drive multiple IHD-210PRs in remote sites without consuming extra network loading. Integrated with PoE switch built-in with IGMP snooping function, there are 64 channels selectable via the IHD-210 series, so video and audio can be transmitted simultaneously. IGMP snooping is an integral part of IP multicast and a communications protocol used by hosts and adjacent routers on IP networks to establish multicast group memberships. IGMP snooping can be used for one-to-many/many-to-many networking applications such as online streaming video and gaming, and allows exclusive transmission and more efficient use of resources.

Extended Display Identification Data (EDID) Support
The IHD-210 series adopts Automatic EDID (Extended Display Identification Data) Copy function to make smooth video distribution over different types of display units. EDID is greatly important as it contains information about resources’ manufacturer names, serial numbers, product types, maximum image sizes, color characteristics, factory pre-set timings, frequency range limits, etc. In some cases, display problems may occur due to incorrect EDID communication between the display monitor and the transmitting unit or inappropriate EDID data programmed by display manufacturers. Therefore, with Automatic EDID Copy function, the IHD-210 series allows the system to copy EDID information from EDID compliant displays and assures accurate display performance.
