IGS-6325-16T4S Industrial L3 16-Port 10/100/1000T + 4-Port 1G/2.5G SFP Managed Ethernet Switch

£619.00

Add to quote

Key Features

  • 16* 10/100/1000BASE-T RJ45 copper ports
  • 4* 100/1000/2500BASE-X mini-GBIC/SFP slots for SFP type auto detection
  • One RJ45-to-RS232 console interface for basic management and setup
  • Modbus TCP for real-time monitoring in the SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
  • Layer 3 IP routing features
  • Quality of service
  • 2*Digital input & 2* digital output channels
  • DIN-rail and wall-mountable design
  • IP30 aluminum case
  • Supports ESD 6KV DC Ethernet protection
  • -40 to 75 degrees C operating temperature
CE FCC RoHS WEEE

Description

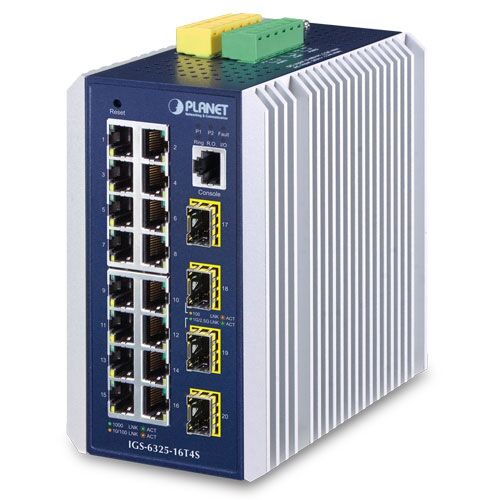

The PLANET IGS-6325-16T4S is the smallest yet high-capacity, industrial-grade Layer 3 managed switch with high-density hybrid copper and fiber optic interfaces. It features 16 10/100/1000BASE-T RJ45 ports and 4 100/1000/ 2500BASE-X SFP slots in a DIN-rail type rugged case and can operate stably under the temperature range from -40 to 75 degrees C.

With the supported Modbus TCP/IP protocol, the IGS-6325-16T4S can easily integrate with SCADA systems,  HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information, communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

It is designed to be installed in any space-limited cabinets as it is small in size. Its connection distance can be flexibly extended via its powerful ports.

C-IGS-6325 non-PoE series_v1.5_L
