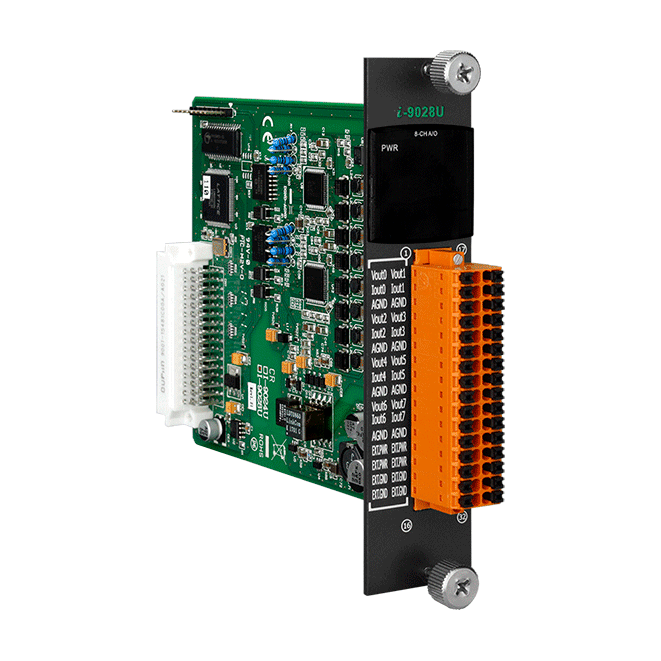

I-9028U 8-ch Isolated Analog Output Module
£270.00
Key Features
- 8-channel Voltage or Current Output
- Individual Channel Configuration
- Short Circuit Protection
- Power-on Value
- Safe Value
- 3000 Vdc intra-module isolation
- 4 kV ESD Protection
- Wide Operating Temperature Range: -25 to +75 °C
Description
The ICP DAS I-9028U is source type analog output modules that offers 8 single-ended analog output channels. Each channel can be programmed to an individual output range of 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, +4 ~ +20 mA or 0 ~ +20 mA. Open wire detection is provided for +4 ~ +20 mA output. Options for configuring power-on and safe values are included, this module is also equipped with qualification for 4 kV ESD protection and 3000 VDC intra-module isolation.
