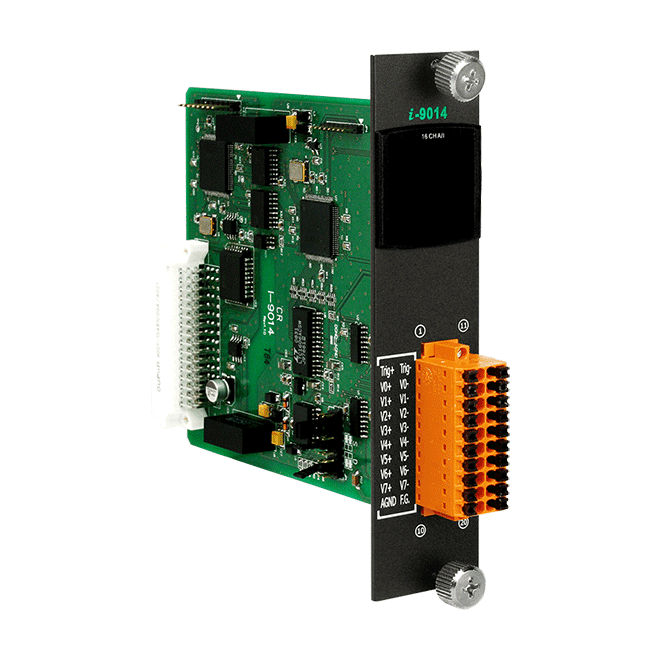

I-9014 16/8-ch Voltage/Current Input Module


Key Features

  • 16 single-ended/8 differential input channels (jumper selectable)
  • Input Range : ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±20 mA
  • 16-bit 250 KHz ADC converter
  • 2500 Vrms intra-module isolation
  • External trigger mode : post-trigger
  • Internal/external trigger start
  • Magic Scan
  • Wide Operating Temperature Range: -25 to +75 °C


The ICP DAS I-9014 is a high performance Analog input module that provides up to 16 single-ended or 8 differential input channels. This module feature 16-bit resolution, 250kS/s sampling rate, and a 4 k sample FIFO buffer, as well as providing 2500 Vrms isolation protection.

The I-9014 module contains an impressive scan function called Magic Scan, which is able to improve many of the functions and meet the demands of high-end users. Magic Scan function can scan the individual input channels at different input range and when performing a multi-channel scan, the sampling rate can be maintained at 250kS/s. The Magic Scan function on the I-9014 module can be operated in two ways, the first is a standard scan and the other is a Virtual Sample and Hold function.

The ICP DAS I-9014 module includes a 4 k sample onboard FIFO buffer for A/D conversion. The new FIFO technology uses a trigger interrupt signal, meaning that if the sampled count is higher than the pre-defined FIFO level, an interrupt signal will notify the host. With the Magic Scan function and 4 k FIFO buffer, the I-9014 can easily implement high-accuracy, high-speed and time-critical data acquisition applications.
