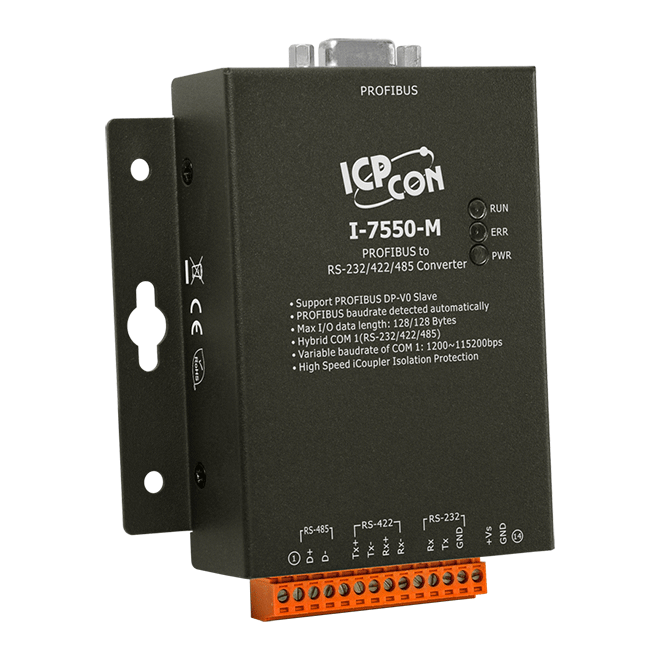

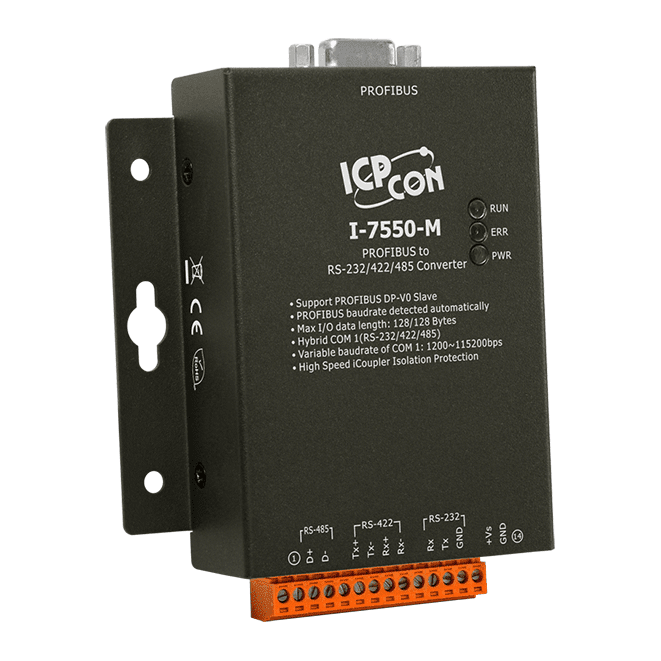

I-7550-M PROFIBUS to RS-232/422/485 Converter

£369.00

Add to quote

Key Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Max Input Data Length : 240 Bytes
  • Max Output Data Length : 240 Bytes
  • Address Setting : 0~126 set by DIP switch or EEPROM
  • Supports HART Mode : point-to-point / multi-drop
  • Support HART Master : Allow two HART Masters
  • Support HART Channel : 4 channels
  • Support HART Frame : Short/Long frame
  • Support HART modules : Connecting up to 15 HART modules
  • Support HART Burst mode : YES
  • Network Isolation Protection : 2500 Vrms High Speed iCoupler
  • DC Isolation Protection : 3000 VDC on PROFIBUS side
CE UKCA RoHS WEEE

Description

The ICP DAS I-7550 converter is specially designed for the slave device of PROFIBUS DP protocol. It offers RS-232, RS-422, and RS-485 three kinds of communication way.

With the Hybrid COM 1 design, users can readily choose one type of com port to use. By using this module, users can put their RS-232/422/485 devices into PROFIBUS network very easily.

Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation
