I-7520U4 Isolated RS-232 to 4 Channels RS-485 Active Hub

£75.00

Key Features

• True RS-485 Star Wiring Hub
• Power and data flow indicator for troubleshooting
• Easy-to-use rotary switch for fixed baud rate setting, 1200 ~ 115200 bps
• Power Input, +10 ~ +30 VDC
• Independent RS-485 driver for each channel
• Automatic RS-485 Direction Control
• 120Ω termination resistor for each channel
• Operating Temperatures, -25 °C ~ +75 °C
• DIN-Rail

Description

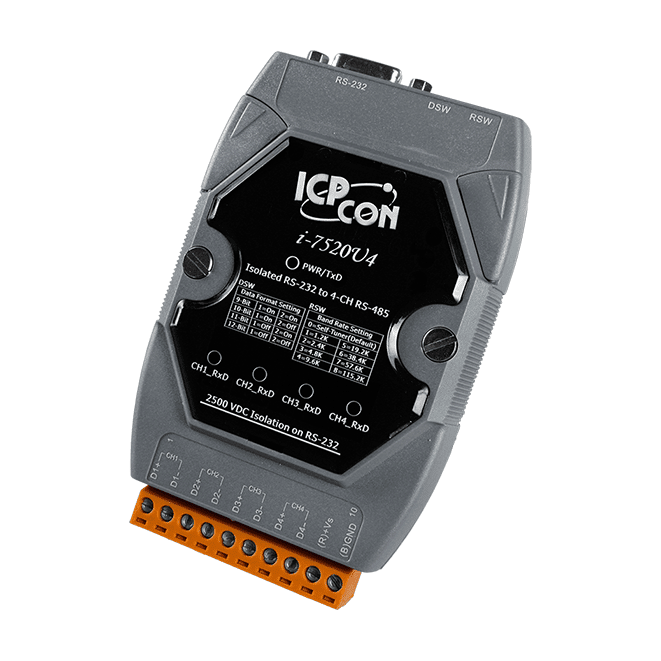

The ICP DAS I-7520U4 is isolated RS-232 to 4-ch RS-485 active star wiring hub, it has 4 independent RS-485 output channels and one RS-232 input channel. Each output channel is equipped with an individual driver. The data from a master to the input channel will simultaneously be forwarded to all the four output channels. The ICP DAS I-7520U4 provides 2 modes of baud rate setting, a Self-Tuner mode and a fixed baud rate mode. The Self-Tuner mode can support Multiple Baud Rate and Multiple Data Format.The Self-Tuner design is exactly the same as ICP DAS I-7520 series. The Fixed baud rate mode offers a better quality for data transmission over long  or electrically noisy environments.

The Short-circuit protection can automatically shut off the breakdown channel, this kind of design can suffice to protect the communication system. When a connected RS-485 equipment breaks down, the breakdown channel will be isolated to ensure that other equipment work normally. In some critical environments, you may need to add termination resistors to prevent the reflection of serial signals. The ICP DAS I-7520U4 includes a 120Ω termination resistor for each channel by jumper selectable (Default disable). The ICP DAS I-7520U4 has 6 LED to indicate the power status and network traffic and TxD/RxD LED will flash when the unit is being sent out or received data.

i-7520u4_data sheet_en
