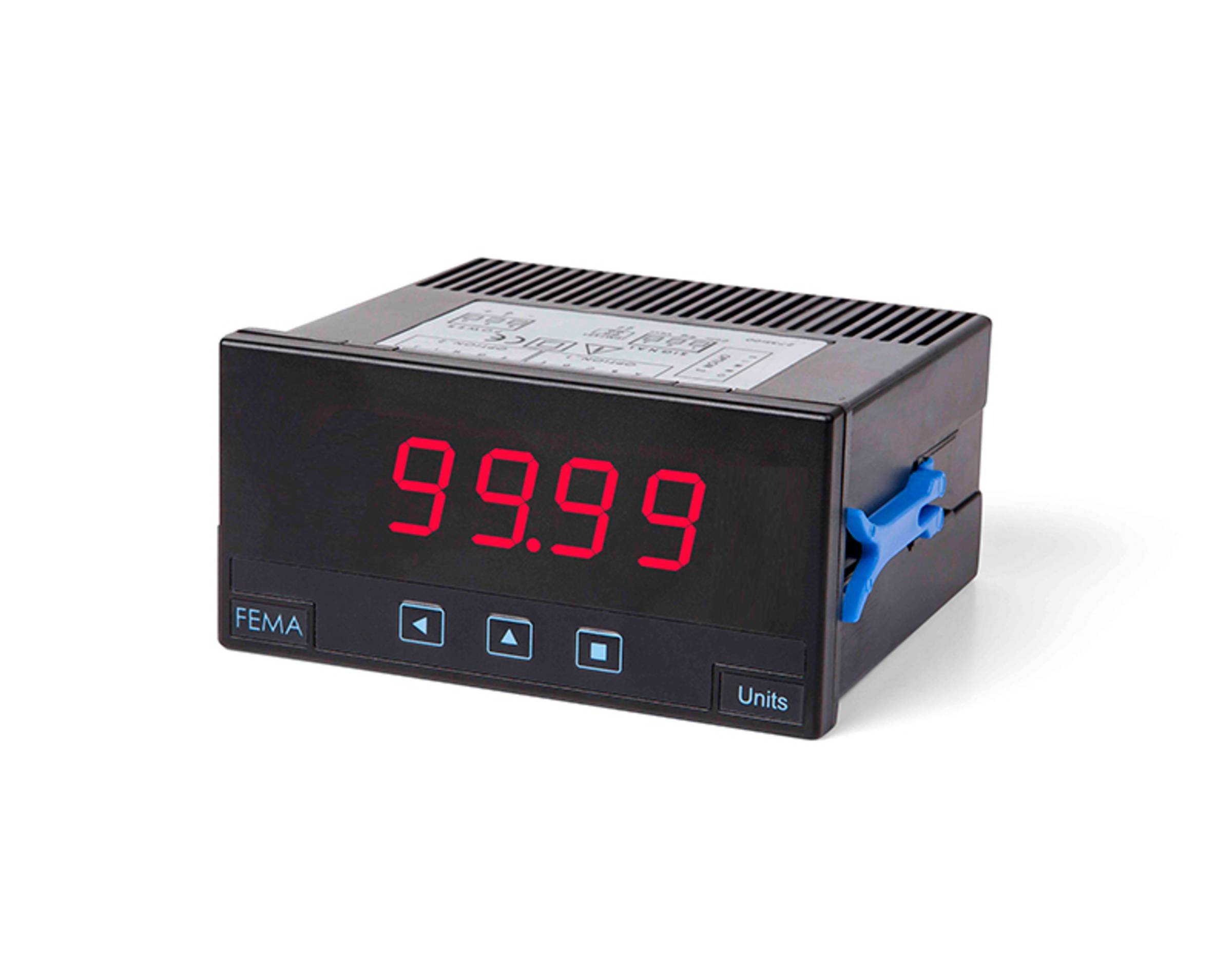

FEMA C40-D-U-65 Universal Input Digital Panel Meter 18-265Vac/DC, IP65 rated


Key Features

  • Programmable panel meter 4 digits (“9999”)
  • Industry standard 1/8 DIN
  • Universal power Input options for 18 to 265V AC & DC Input
  • Input takes huge range of electrical signals: temperature, process & even high voltage signals
  • 1 or 2 alarms, independent, configurable as maximum or minimum, with set point & hysteresis
  • 5 year warranty


The FEMA C40-D series digital panel meter is specially designed for cost effective applications in demanding industrial environments. This compact digital panel meter accepts a wide range of signals including mA and Vdc, thermocouples K, J, E, N, L, R, S, B, T, C, resistive temperature probes Pt100, Pt500, Pt1000, Ni100, Ni200 and NTC, AC and DC voltages up to 600 V and AC and DC currents up to 5 A.

The FEMA C40-D programmable panel meter comes in 96x48mm format (standard 1/8 DIN) and can be easily configured via the front keypad and internal jumpers for the input selection. The C40-D series is equipped with a 4 digits resolution (maximum display “9999”) and IP65 protection as standard.
