eLogger-WES300R HMI, web HMI & data logger software with 300 tags (WES OS)


Key Features

  • Support Windows 7 & 10 OS
  • Support Modbus TCP/IP/Modbus RTU/ Modbus ASCII
  • Compatible with ET-7000, M-7000, MQ-7200 remote I/O modules
  • Compatible with ICP DAS PACs: ViewPAC & WinPAC
  • HMI Pages: Maximum of 32 pages
  • HMI Elements available: Button, Text Box, Linear Gauge, Angular Gauge, LED, Switch, Tank, Label, Plot, Seven Segment, Thermometer, Slider & Odometer
  • Support administrator login
  • Web page converter Elements: Text Box, Seven Segment, Label, Button, Picture Toggle, Chart, Linear Gauge & Radial Gauge
  • Support browsers: Google Chrome, Internet Explorer, Firefox, Safari, and Opera

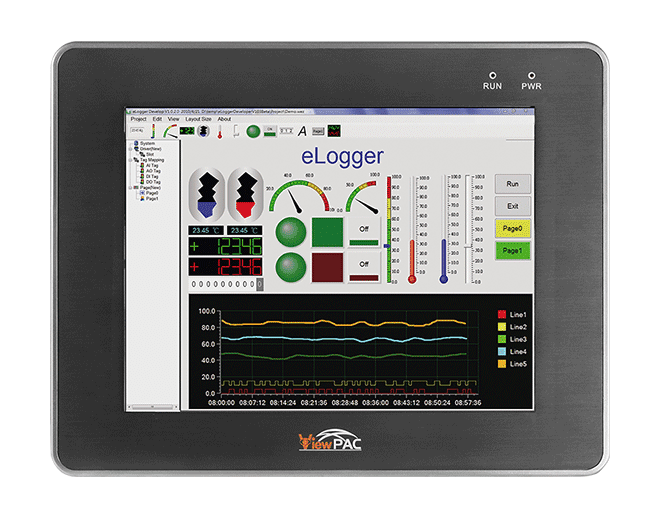

eLogger is an easy-to-use software to implement HMI, web HMI and data logger on windows PC and ICP DAS PACs for simple I/O monitor and system control. eLogger is free of charge for 30 tags in PC veriosn and 50 tags in PAC version. It could reduce the cost and shorten the time to market.

eLogger can develop a project with flexible I/O configuration quickly and easily.

The setup can be completed in only 5 steps:
– configuring I/O modules,
– configuring data logger,
– designing HMI layout pages and web pages,
– uploading the project and web pages to PAC and
– executing the project.

In these simple steps, there is no need of software programming knowledge. If more powerful functions need to be added, eLogger also provides a flexible interface, “shared memory”, to cooperate with Visual Studio .NET, Win-GRAF and ISaGRAF programs.
