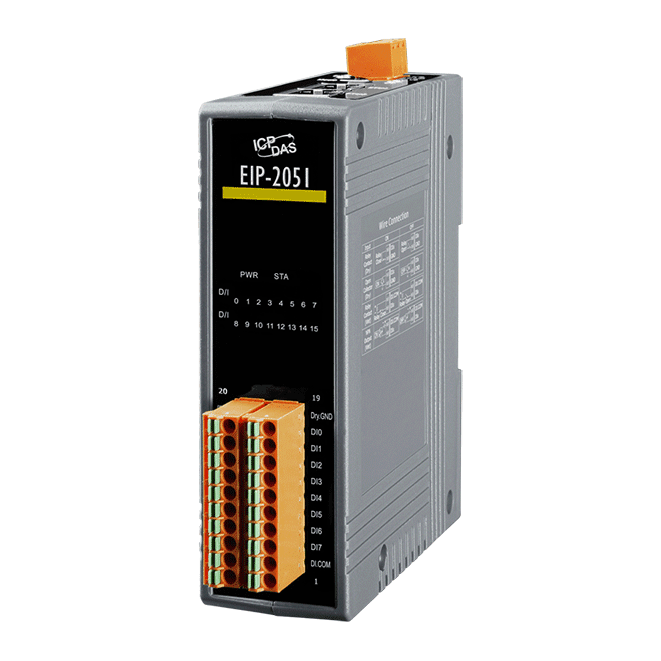

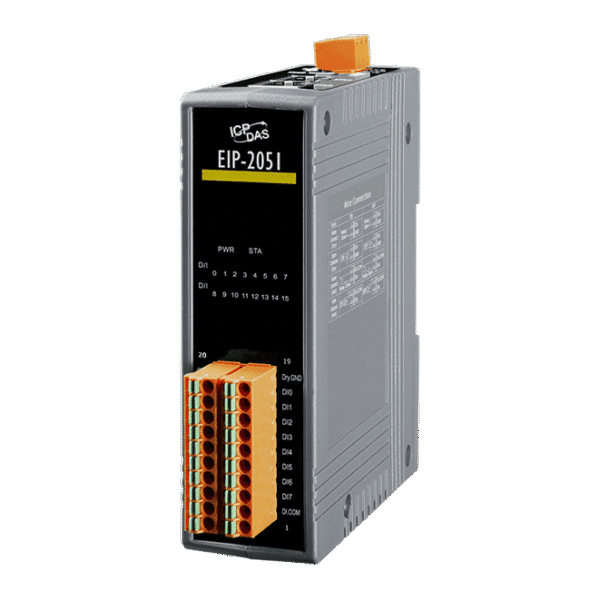

EIP-2051 EtherNet/IP Module with Isolated 16-ch DI

£165.50

Add to quote

Key Features

  • Transfer protocol: EtherNet/IP
  • Powerful 32-bit MCU handles efficient network traffic
  • 10/100 Base-TX Ethernet, RJ-45 x 2
    (Auto-negotiating, auto MDI/MDIX, LED Indicators)
  • Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
  • Easy firmware update via Ethernet
  • Removable terminal block connector
  • Built-in I/O
    • DI: 16 Channels
  • Power-On-Value
  • Safe-Value

Description

The ICP DAS EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.

The ICP DAS EIP-2051 is a remote digital input module with 16 input channels. It is designed as an EtherNet/IP adapter. Users can obtain the output status as well as the connection status of the EIP-2051 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote diagnosis
  • Testing Equipment
