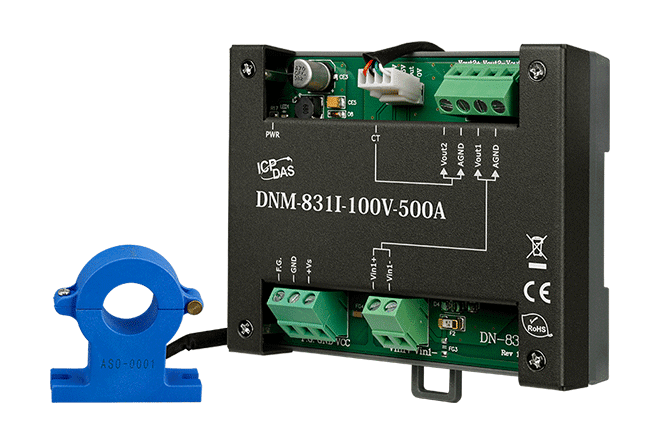

DNM-831I-100V-500A 1-ch Voltage Attenuator (100V) & 1-ch Current Transformer (500A) (Metal)

£209.00

Features

  • High Voltage Input and High Current Input Measurement
  • Three Way Isolation
  • Linear Attenuation Ratio
  • High Input Impedance
  • Easily wire connection
CE UKCA FCC RoHS WEEE

Description

The ICP DAS DNM-831I-100V-500A is 1-channel voltage attenuator and 1-channel current transformer. The maximum voltage input range is from ±100 V can be attenuated to ±10 V and the maximum current input range is from ±500A can be attenuated to ±10 V.

It provides 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure the high current.
