ALAD-A1910T(P) 19“ Industrial Capacitive Touch Panel PC with Intel® Elkhart lake Soc CPU series processor

Key Features

  • Aluminium alloy die-cast body, full flat mirror panel
  • 19-inch multi-point capacitive touch screen
  • Intel® Elkhart lake Soc CPU, fanless cooling design
  • 1*DDR4 3200MHz SODIMM, supports up to 32GB
  • 1*MiniPCIe, 1*M.2 B-Key Type 3042/3052
  • 4*COM, 2*LAN, 4*USB3.2, optional 1*8-bit DIO (optional with COM1/2)
  • 2.5-inch SATA disk, 1*mSATA, 1*Line out, 2*2W power amplifier
  • DC 9~36V wide voltage DC power supply
  • Standard VESA mounting and panel flush mounting

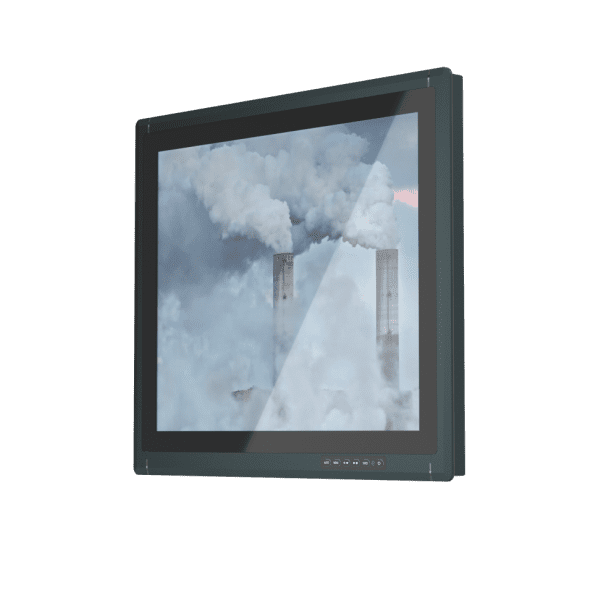

The JHCTECH ALAD-A1910T is a fully flat mirror tablet computer equipped with Intel® Elkhart lake Soc CPU series processor. It adopts a 18.5-inch 1280*1024 resolution LCD screen and a fully-fitted surface projection multi-point capacitive touch screen.

This panel PC has a comprehensive I/O interface and supports 1*2.5-inch SATA drive and 1*mSATA dual storage, built-in 1*Mini PCIe and 1*M.2 3042/3052 expansion and DC 9~36V wide voltage DC power supply.

The panel PC housing is made of aluminium die-casting and has no fan for heat dissipation. It has a variety of installation methods and is suitable for intelligent MES systems and equipment management HMIs.

ALAD-A1910T(P)-I02 DS-EN A0.1
