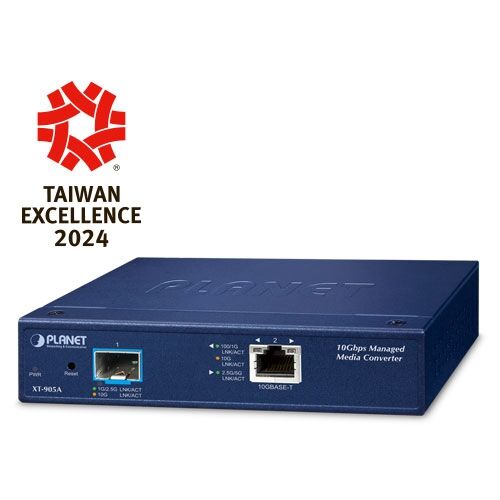

XT-905A 1-Port 10G/5G/2.5G/1G/100BASE-T + 1-Port 10G/1GBASE-X SFP+ Managed Media Converter
£199.00
Key Features
- One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
- One 10G/2.5G/1G/100BASE-X SFP+ interface
- Layer 2 Features – Broadcast / Multicast / Unknown Unicast
- Quality of Service
- IPv4 and IPv6 dual stack management
- Simple Network Time Protocol (SNTP)
- SNMP Management
- IP address access management to prevent unauthorized intruder
- External 12VDC, 1.5A power adapter
- 0 to 50 degrees C operating temperature
- Supports 4KVDC Contact/8KVDC Air Ethernet ESD protection
- Wall-mount and DIN-rail installation (optional)
Description
PLANET XT-905A high-performance media converter improves network connectivity and provides sophisticated management capabilities. It is the first 10G media converter in the industry with standalone secure management, making it the best option for enterprise and telecom remote management and monitoring. The XT-905A allows for remote management via an intuitive web interface, command line interface (CLI) and SNMP protocol, enabling easy monitoring and configuration of the converter from anywhere.
Our cutting-edge converter features one 10GBASE-T copper port and one 10G SFP+ port, integrating the power of 10G connectivity with the versatility of fiber and copper ports. This powerful yet compact solution makes it the ideal choice for businesses looking to boost their network speed and functionality.
The XT-905A can reach speeds of up to 10Gbps over copper or fiber-optic cabling, greatly improving the performance of large data transmissions. Its built-in 10GBASE-T copper interface features 5-speed auto-negotiation (10G/5G/2.5G/1G/100) and can transmit data at 10Gbps over the existing Cat6A/Cat7 UTP cabling, eliminating the need for expensive upgrades. With its Plug and Play design, installation is easy and hassle-free, so you can enjoy the speed you need without any extra effort.t.
The fiber-optic 10GBASE-X SFP+ interface supports 4 speeds, 10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX and 100BASE-FX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.
The XT-905A supports software-based redundant ring technology and features strong, rapid self-recovery capability to prevent interruption and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, ensuring rapid self-recovery in ring networks. With this advanced feature, the data link recovery time can be as fast as 500ms.
