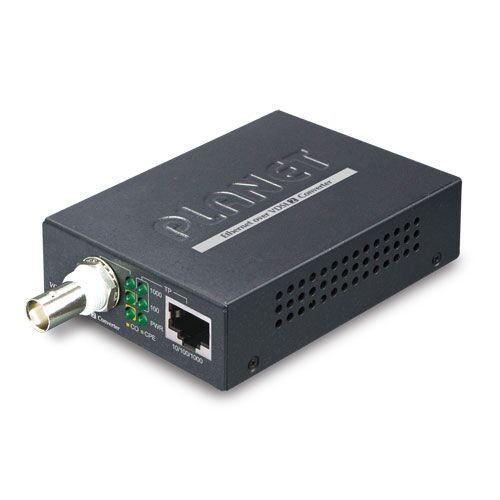

VC-232G 1-Port 10/100/1000T Ethernet over Coaxial Converter

£119.00

Key Features

  • ITU-T G.993.5 G.Vectoring and G.INP
  • Upstream/Downstream bandwidth up to 200/100Mbps
  • CO/CPE mode selectable via DIP switch
  • Selectable target band plan and SNR margin
  • Half duplex back pressure and IEEE 802.3x full duplex pause frame flow control
  • One BNC connector for VDSL connection
  • Uses existing RG59/RG6 coaxial cable
  • Used in pairs to extend Point-to-Point connection up to 1.4km
  • Supports a packet size of up to 1522 bytes, IEEE 802.1Q VLAN tag transparency
  • Advantage of minimum installation time (Simply by Plug-and-Play)
  • Supports extensive LED indicators for network diagnosis
  • Co-work with PLANET media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48)
  • Compact in size and easy to install
CE UKCA FCC RoHS WEEE

Description

To fulfil the needs of long distance and higher speed required Ethernet over Coaxial applications, PLANET Technology offers a new-generation Ethernet over Coaxial Converter, VC-232G. It features 1 10/100/1000BASE-T RJ45 port and 1 BNC female connector with a compact-sized metal housing, making the placement of the unit convenient. Working well with a pervasive coaxial network, the VC-232G provides an excellent bandwidth of up to a total duplex data rate of 300Mbps which can extend a maximum distance up to 1.4km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable to another 100-meter UTP cable for any type of IP network device such as HD IP camera, wireless access point, NVR and digital signage.

The PLANET VC-232G is based on the two-core networking technology, Gigabit Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2).  The PLANET VC-232G offers a stable yet high-speed point-to-point network access up to a duplex data transmission of 300Mbps. It provides 2 selective transmission modes —  asymmetric mode or symmetric mode — for the transmission of upstream and downstream signals.

The VC-232G is also a Long Reach Ethernet (LRE) solution which provides a quick replacement and smooth migration solution from existing analog system to full digital system. A normal UTP cable can only be extended up to 100 meters, but with the VC-232G, the distance for Ethernet networking can be extended up to 1,400 meters (4,593ft.), which is ideal for network applications such as Long-distance IP network devices, IP digital signage, Cable TV to IPTV, Distance video education, Electronic billboards and other applications.

The PLANET VC-232G offers two operation modes, the client-side CPE and central-side CO, making any network applications easy and flexible. The CPE or CO mode can be adjusted by using the built-in DIP switch. For point-to-point connection, one VC-232G in CPE mode and the other one in CO mode must be set up as a pair of converters to perform the connection. This enables the administrator to efficiently manage the network over coaxial cable, making long-distance transmission better.
