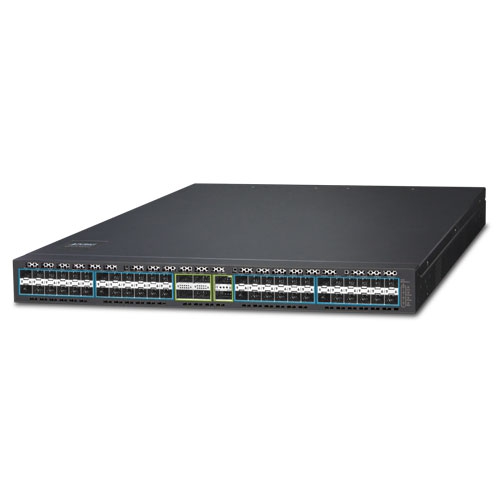

XGS-6350-48X2Q4C Layer 3 48-Port 10G SFP+ + 2-Port 40G QSFP+ + 4-Port 100G QSFP28 Managed Switch

Description

The PLANET XGS-6350-48X2Q4C is a High-performance Layer 3 Managed Switch that meets the next-generation Metro, Data Center, Campus and Enterprise network requirements. It has high-density 48 10G SFP+, 2 40G QSFP+ and 4 40G/100GbE QSFP28 fiber interfaces delivered in a 1RU rugged case.

The administrator can flexibly choose the suitable transceivers according to the transmission distance or the transmission speed required to extend the 1G/10G/40G/100G network efficiently. Besides, with 1.92Tbps switching capacity, the XGS-6350-48X2Q4C can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers where audio, video streaming and multicast applications are utilised.

The XGS-6350-48X2Q4C is equipped with one extractive 100~240V AC power supply unit, so it is easy to replace the power for users. Besides, the XGS-6350-48X2Q4C reserves another backup power slot on the rear panel where the second AC or DC power can be added to make it a redundant power supply. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.

The XGS-6350-48X2Q4C supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 50ms to quickly bring the network back to normal operation.
